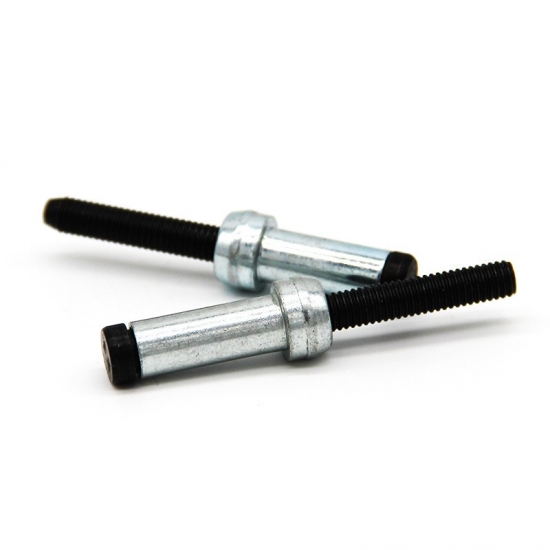

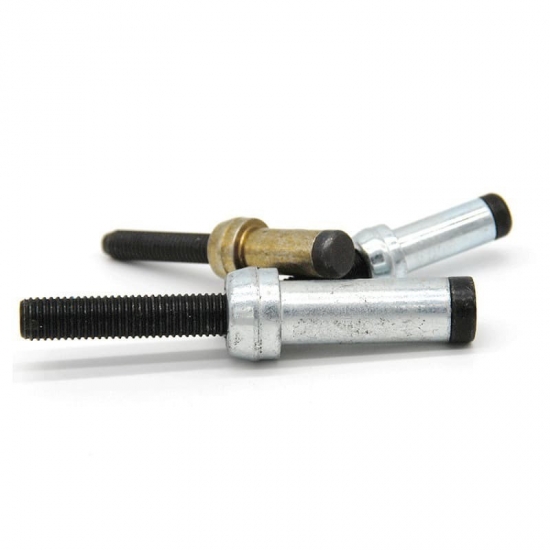

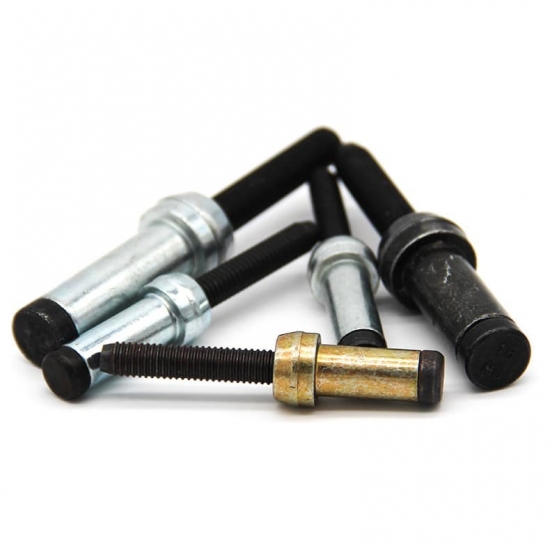

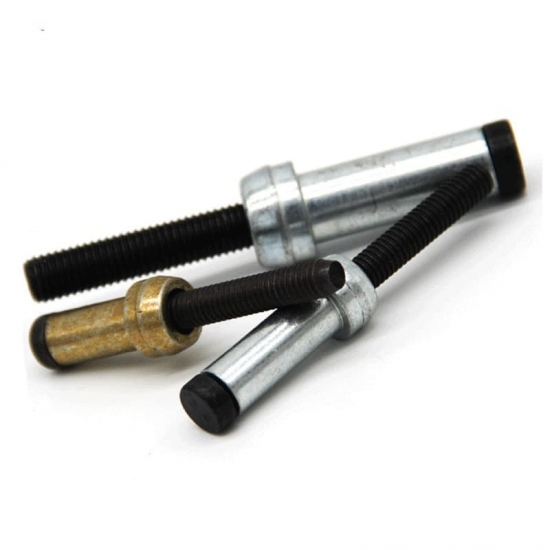

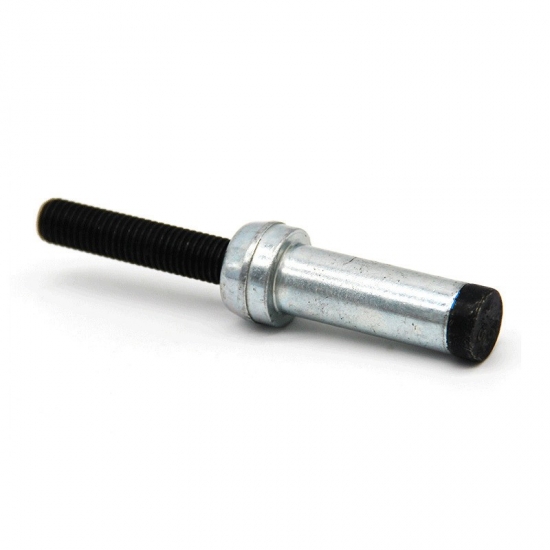

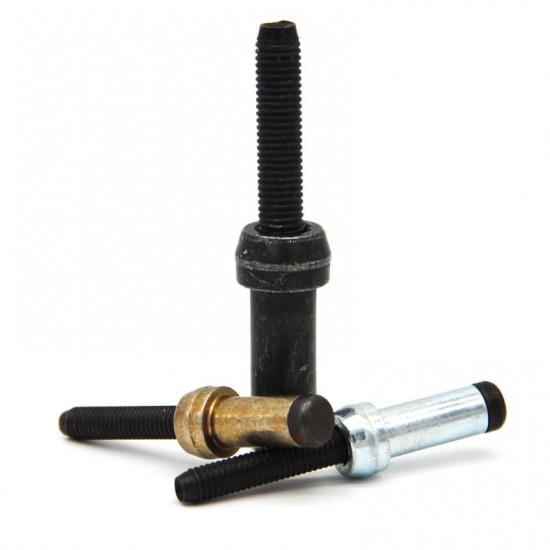

Steel high strength bullet head huck bom rivet

Steel high strength bullet head huck bom rivet

Borie Fasteners is a professional Huck Bom Rivet manufacturer and supplier, we are committed to providing clients with superior fastening solutions. Huck Bom Rivet customized available in material, length, diameter, surface treatment.

Standard:
Huck Bom Rivet
Head Type:
Dome Head/Large Flange
Material:
Steel
Certificate:
ISO9001/IATF16949
Finish:
zinc plated/painted
Factory:
We are a factory with 19 years of R&D experience
MOQ:
10000pcs

Inquire Now

DATASHEET

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Manufacturer High Strength Huck Bom Blind Rivets

Huck Bom rivet is a type of structural blind rivet that is specifically designed for heavy-duty applications. It is a high-strength fastener capable of providing exceptional shear and tensile strength.

The Huck Bom rivet features a unique, multi-grip design that allows it to join a wide range of material thicknesses. It consists of a smooth, cylindrical body with grooves around its circumference. These grooves provide multiple grip lengths, enabling the rivet to accommodate variations in material thickness.

Steel Blind Lock Huck Bom Rivet

Available Sizes: 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4"

Materials: Steel

○ High strength, vibration-proof, can replace bolt or welding

○ Can single blind operation,suitable for a variety of scenarios

○ Installation is more simple, no torque, no sparks

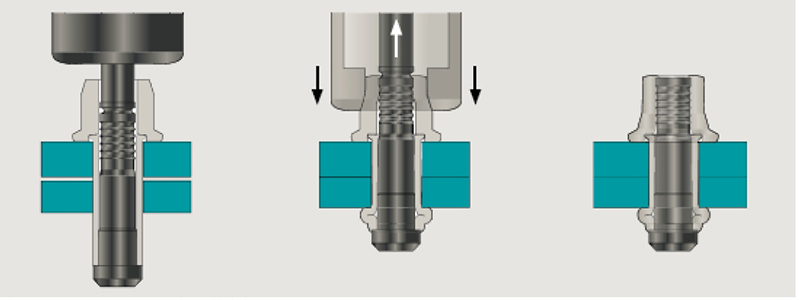

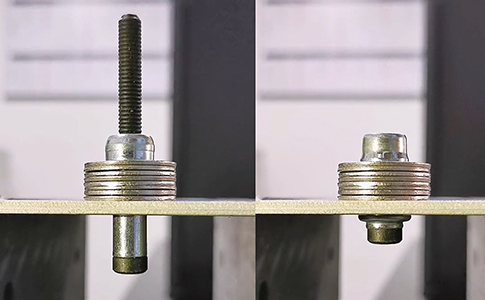

How Does Huck Bom Rivet Work?

Prepare the components to be joined.
Insert the pin into the pre-drilled holes of the assembly.
Place the collar onto the pin.
Apply a controlled axial force to the pin using a specialized installation tool.
The pin head expands, while the collar is deformed and swaged into the pre-drilled holes.
The joint is formed when the collar reaches a predetermined level of deformation.
The collar locks the pin in place, creating a secure and robust connection.
The installed Huck Bom Rivets provide resistance against vibration, shear, and tensile forces.
The fasteners are visually inspected to ensure proper installation.
The completed joint offers excellent structural integrity and requires no additional treatment or maintenance.

Advantages

Versatile fastening solution.
Increased flexibility in joining different material thicknesses.
Enhanced strength and load-bearing capacity.
Improved resistance to vibration and loosening.
Time-saving installation process.
Reliable and durable fastening.
Reduces the need for additional hardware components.

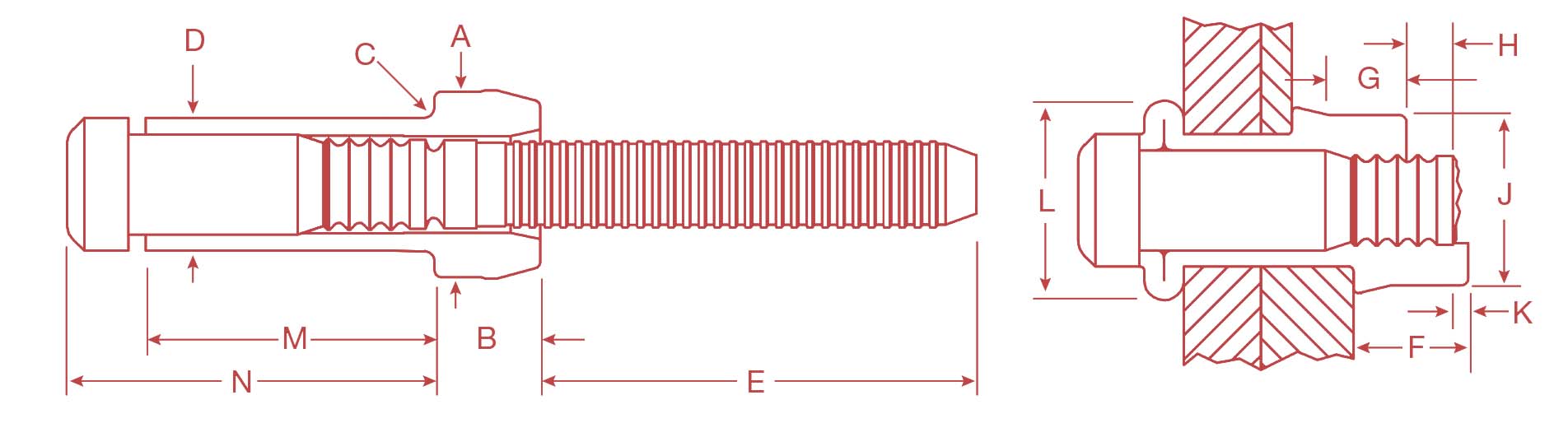

High Strength Huck Bom Blind Rivets Datesheet

Huck Bom Rivets

Small Diameter Bullet Head Huck Bom Rivet

DIA.	DIA	HOLE SIZE	A	B	C MAX	D	E MIN	SHEAR/lbs	TENSILE/lbs
3/16"	-6	.208-.222	0.276-0.286	0.152-0.168	0.015	0.196-0.206	0.785	2800	1800
1/4"	-8	.277-.292	0.368-0.380	0.205-0.225	0.02	0.262-0.275	0.86	5100	3250
5/16"	-10	.348-.368	0.468-0.478	0.266-0.278	0.025	0.332-0.346	1.285	8050	5200
3/8"	-12	.413-.435	0.553-0.563	0.315-0.327	0.03	0.393-0.411	1.23	11100	7250
1/2"	-16	.546-.581	0.740-0.755	0.415-0.438	0.035	0.529-0.544	1.53	20150	13000
5/8"	-20	.687-.728	0.925-0.941	0.507-0.545	0.04	0.662-0.685	1.71	28500	20500
3/4"	-24	.828-.873	1.110-1.130	0.637-0.654	0.05	0.795-0.816	2.15	45100	29100

Inspection Data

DIA.	F NOM	G MIN	H MAX	J MAX	K MAX	L NOM
3/16"	0.177	0.109	0.094	0.261	0.031	0.306
1/4"	0.232	0.156	0.094	0.346	0.031	0.405
5/16"	0.3	0.187	0.171	0.434	0.046	0.517
3/8"	0.36	0.203	0.171	0.51	0.046	0.605
1/2"	0.475	0.297	0.171	0.686	0.063	0.841
5/8"	0.595	0.406	0.313	0.874	0.078	0.997
3/4"	0.722	0.438	0.313	1.027	0.078	1.196

Grip Datas

SIZE	GRIP NO.	GRIP RANGE	M NOM	N MAX
SIZE	GRIP NO.	GRIP RANGE	M NOM	N MAX
6 (3/16")	2	.093-.156	0.376	0.5
	3	.157-.219	0.439	0.562
	4	.220-.281	0.501	0.625
	5	.282-.344	0.564	0.687
	6	.345-.406	0.626	0.75
	7	.407-.469	0.689	0.812
	8	.470-.531	0.751	0.875
	9	.532-.594	0.814	0.937
	10	.595-.656	0.876	1
	11	.657-.719	0.939	1.062
	12	.720-.781	1.001	1.125
8 (1/4")	2	.093-.156	0.46	0.625
	3	.157-.219	0.523	0.688
	4	.220-.281	0.585	0.75
	5	.282-.344	0.648	0.813
	6	.345-.406	0.71	0.875
	7	.407-.469	0.773	0.938
	8	.470-.531	0.835	1
	9	.532-.594	0.898	1.063
	10	.595-.656	0.96	1.125
	11	.657-.719	1.023	1.188
	12	.720-.781	1.085	1.25
	13	.782-.843	1.147	1.313
	14	.844-.905	1.209	1.375
10 (5/16")	4	.188-.312	0.695	0.875
	5	.250-.375	0.758	0.938
	6	.313-.437	0.82	1
	8	.438-.562	0.945	1.125
	10	.563-.687	1.07	1.25
	12	.688-.812	1.195	1.375
	14	.813-.937	1.32	1.5
	16	.938-1.062	1.445	1.625
SIZE	GRIP NO.	GRIP RANGE	M NOM	N MAX
SIZE	GRIP NO.	GRIP RANGE	M NOM	N MAX
12 (3/8")	4	.188-.312	0.766	0.975
	6	.313-.437	0.891	1.1
	8	.438-.562	1.016	1.225
	10	.563-.687	1.141	1.35
	12	.688-.812	1.266	1.475
	14	.813-.937	1.391	1.6
	16	.938-1.062	1.516	1.725
	18	1.063-1.187	1.641	1.85
	20	1.188-1.312	1.766	1.975
16 (1/2")	4	.251-.375	1	1.266
	6	.376-.500	1.125	1.391
	8	.501-.625	1.25	1.516
	10	.626-.750	1.375	1.641
	12	.751-.875	1.5	1.766
	14	.876-1.000	1.625	1.891
	16	1.001-1.125	1.75	2.016
	18	1.126-1.250	1.875	2.141
	20	1.251-1.375	2	2.266
	22	1.376-1.500	2.125	2.391
	24	1.501-1.625	2.25	2.516
20 (5/8")	4	.251-.500	1.213	1.531
	8	.501-.750	1.463	1.781
	12	.751-1.000	1.713	2.031
	16	1.001-1.250	1.963	2.281
	20	1.251-1.500	2.213	2.531
24 (3/4")	4	.251-.500	1.38	1.75
	8	.501-.750	1.63	2
	12	.751-1.000	1.88	2.25
	16	1.001-1.250	2.13	2.5
	20	1.251-1.500	2.38	2.75
	24	1.501-1.750	2.63	3
	28	1.751-2.000	2.88	3.25
	32	2.001-2.250	3.13	3.5
	36	2.251-2.500	3.38	3.75
	40	2.501-2.750	3.63	4
	44	2.751-3.000	3.88	4.25
