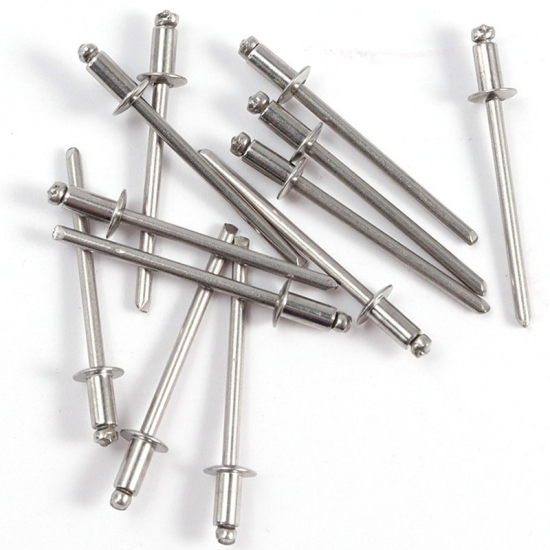

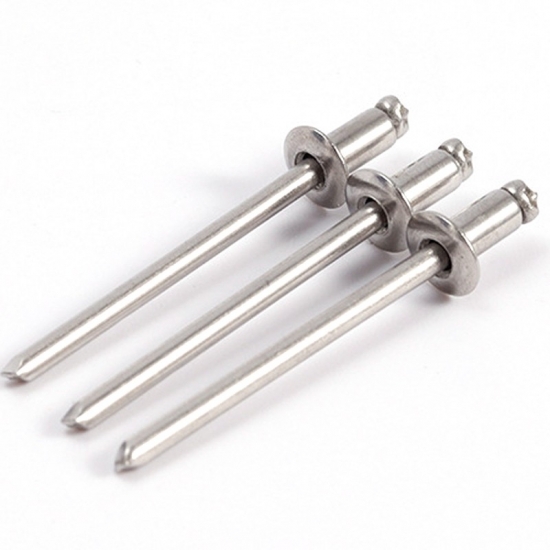

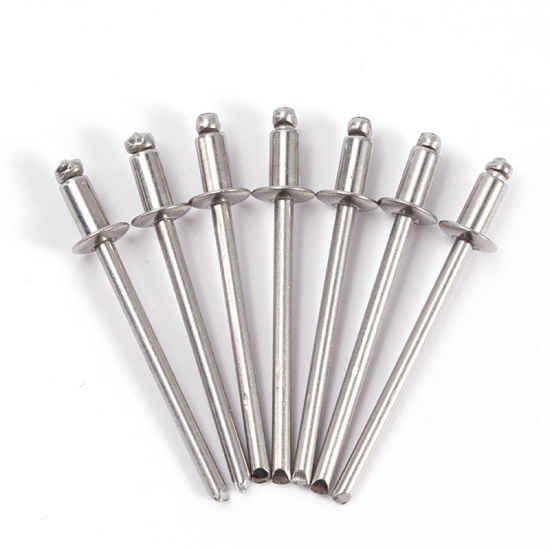

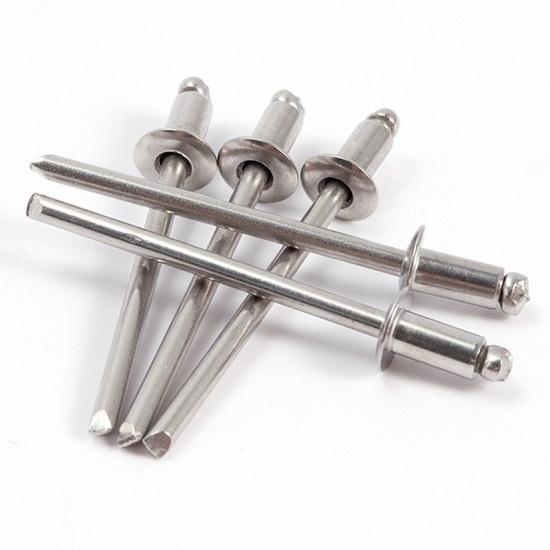

Monel Blind Rivet With Dome Head

Customized Made Open Type Monel Blind Rivet

Dome Head Monel blind rivet is a new type of riveting fastener that offers secure and efficient joining of two or more materials.

Monel 400 Blind Rivet



Monel K500 Blind Rivet

The advanced properties of Monel rivets make them a reliable, long-lasting fastening solution for even the most high-performance jobs. They offer superior corrosion resistance and are used in demanding industrial applications that require exposure to harsh elements, including marine, oil and gas processing equipment, aerospace components, and more.

Monel 400 & Monel K500 Rivet Material Grades

• Monel 400: Consists of nickel and copper with small amounts of iron and manganese. Monel 400 rivets have good strength and excellent corrosion resistance, making them suitable for marine applications and other environments that require exposure to corrosive elements.
• Monel K500: Similar in composition and corrosion resistance to Monel 400, but with additional aluminum and titanium for enhanced strength through precipitation hardening. Since Monel K500 rivets have excellent strength, they are ideal for heavy duty applications in corrosive and marine environments.

Head Style

• Dome Head Rivets
• Countersunk Head Rivets
• Large Flange Head Rivets

Advantages

• Design of the stem head ensures it stays in place after installation.
• High strength, low cost fastener.
• Available in a variety of materials.
• Ideal for a wide range of applications.
• High installation efficiency.

Aluminum/ Steel Dome Head Open End Blind Rivet

RIVET DIAMETER /mm	PART NUMBER	RIVET LENGTH /mm	GRIP RANGE /mm	HEAD DIAMETER /mm	HEAD HEIGHT /mm	MANDREL DIAMETER /mm	MANDREL LENGTH /mm	HOLE SIZE /mm	SHEAR /N	TENSILE /N
D1		L		D2	k	d	p	DRILL
		+1/-0	MIN.-MAX.		MAX.	MAX.	MIN.		MIN.	MIN.
2.4 +0.08 -0.15	AS2404	4.0	0.5-2.0	4.2-5.0	1.0	1.55	26.00	2.5-2.6	250 N	350 N
	AS2406	6.0	2.0-4.0
	AS2408	8.0	4.0-6.0
	AS2410	10.0	6.0-8.0
	AS2412	12.0	8.0-9.5
3.0 +0.08 -0.15	AS3006	6.0	1.5-3.5	5.4-6.3	1.3	2.00		3.1-3.2	550 N	850 N
	AS3008	8.0	3.0-5.0
	AS3010	10.0	5.0-7.0
	AS3012	12.0	7.0-9.0
	AS3014	14.0	9.0-11.0
	AS3016	16.0	11.0-13.0
	AS3018	18.0	13.0-15.0
	AS3020	20.0	15.0-17.0
3.2 +0.08 -0.15	AS3206	6.0	1.5-3.5	5.8-6.7	1.3	2.00		3.3-3.4	750 N	1100 N
	AS3208	8.0	3.5-5.0
	AS3210	10.0	5.0-7.0
	AS3212	12.0	7.0-9.0
	AS3214	14.0	9.0-11.0
	AS3216	16.0	9.0-13.0
	AS3218	18.0	13.0-15.0
	AS3220	20.0	15.0-17.0
	AS3225	25.0	17.0-22.0
4.0 +0.08 -0.15	AS4006	6.0	1.0-3.0	6.9-8.4	1.7	2.45	27.00	4.1-4.2	1250 N	1800 N
	AS4008	8.0	3.0-5.0
	AS4010	10.0	5.0-6.5
	AS4012	12.0	6.5-8.5
	AS4014	14.0	8.5-10.5
	AS4016	16.0	8.5-12.5
	AS4018	18.0	12.5-14.5
	AS4020	20.0	12.5-16.5
	AS4025	25.0	16.5-21.0
	AS4030	30.0	21.5-26.0
	AS4035	35.0	26.0-30.0
4.8 +0.08 -0.15	AS4806	6.0	1.5-2.5	8.3-10.1	2.0	2.95	28.00	4.9-5.0	1850 N	2600 N
	AS4808	8.0	2.5-4.0
	AS4810	10.0	4.0-6.0
	AS4812	12.0	6.0-8.0
	AS4814	14.0	7.5-9.5
	AS4816	16.0	8.0-12.0
	AS4818	18.0	12.0-14.0
	AS4820	20.0	12.0-16.0
	AS4825	25.0	16.0-21.0
	AS4830	30.0	21.0-25.0
	AS4835	35.0	25.0-30.0
	AS4840	40.0	30.0-35.0
6.4 +0.08 -0.15	AS6410	10.0	3.0-4.0	11.6-13.4	2.7	3.90	32.00	6.5-6.6	3400 N	4850 N
	AS6412	12.0	3.0-6.0
	AS6414	14.0	6.0-8.0
	AS6416	16.0	6.0-10.0
	AS6418	18.0	10.0-12.0
	AS6420	20.0	12.0-14.0
	AS6425	25.0	14.0-18.0
	AS6430	30.0	18.0-23.0
	AS6435	35.0	23.0-28.0
	AS6440	40.0	28.0-33.0

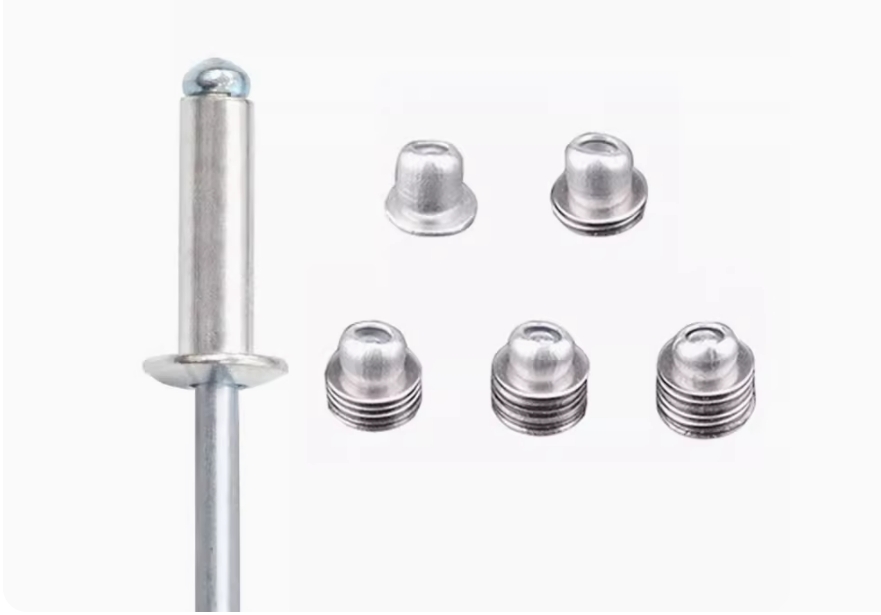

Production Process

Step 1

Blind rivet machine---making the rivet body

Step 2

Nail making machine---making the mandrel

Step 3

Assembly machine--finish the assembly of rivet body and the mandrel

Package

Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.

Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.

Blind Rivet Application

Blind Rivet have a wide range of applications in various industries and settings. Most of them are used in:

• Facade
• Solar panel bracket
• Automoblie, Elevator
• Air conditioner, Cabinet
• Catering equipment
• Aluminum windows&doors
