Borie Fasteners is a professional fastener manufacturer and supplier, we are committed to providing clients with superior fastening solutions. Blind rivet customized available in material, length, diameter,surface treatment.
Standard:
DIN7337Diameter:
3.2mm/4.0mm/4.8mmHead Type:
Dome Head/Countersunk Head/Large FlangeMaterial:
Aluminum/Steel/Stainless Steel/Copper/Brass/MonelCertificate:
ISO9001/IATF16949Finish:
zinc plated/paintedFactory:
We are a factory with 19 years of R&D experienceMOQ:
50000pcs
Round Head Open Type Blind Rivet Manufacturer
Open type blind rivet is a type of fastener that offers secure and efficient joining of two or more materials.
It consists of a cylindrical body with a mandrel, which is a thin rod-like component. The rivet is inserted through a pre-drilled hole in the materials to be joined. When the mandrel is pulled, the blind end of the rivet expands, creating a strong and reliable connection.
Ease of installation and high load-bearing capacity make them an ideal choice for fastening applications.
Borie Fasteners is committed to providing customers with superior fastening solutions. Customized available in material, length, diameter,coating.
Riveting performance requirements:
Material (Body/Mandrel)
Head Style
Advantages

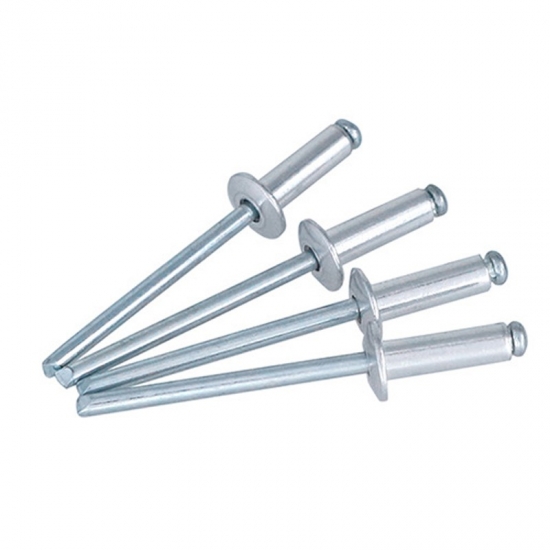

Aluminum/ Steel Dome Head Open End Blind Rivet
| RIVET DIAMETER /mm |
PART NUMBER |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
| D1 | L |  |
D2 | k | d | p | DRILL |  |
 |
|
| +1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | ||||
| 2.4 +0.08 -0.15 |
AS2404 | 4.0 | 0.5-2.0 | 4.2-5.0 | 1.0 | 1.55 | 26.00 | 2.5-2.6 | 250 N | 350 N |
| AS2406 | 6.0 | 2.0-4.0 | ||||||||
| AS2408 | 8.0 | 4.0-6.0 | ||||||||
| AS2410 | 10.0 | 6.0-8.0 | ||||||||
| AS2412 | 12.0 | 8.0-9.5 | ||||||||
| 3.0 +0.08 -0.15 |
AS3006 | 6.0 | 1.5-3.5 | 5.4-6.3 | 1.3 | 2.00 | 3.1-3.2 | 550 N | 850 N | |
| AS3008 | 8.0 | 3.0-5.0 | ||||||||
| AS3010 | 10.0 | 5.0-7.0 | ||||||||
| AS3012 | 12.0 | 7.0-9.0 | ||||||||
| AS3014 | 14.0 | 9.0-11.0 | ||||||||
| AS3016 | 16.0 | 11.0-13.0 | ||||||||
| AS3018 | 18.0 | 13.0-15.0 | ||||||||
| AS3020 | 20.0 | 15.0-17.0 | ||||||||
| 3.2 +0.08 -0.15 |
AS3206 | 6.0 | 1.5-3.5 | 5.8-6.7 | 1.3 | 2.00 | 3.3-3.4 | 750 N | 1100 N | |
| AS3208 | 8.0 | 3.5-5.0 | ||||||||
| AS3210 | 10.0 | 5.0-7.0 | ||||||||
| AS3212 | 12.0 | 7.0-9.0 | ||||||||
| AS3214 | 14.0 | 9.0-11.0 | ||||||||
| AS3216 | 16.0 | 9.0-13.0 | ||||||||
| AS3218 | 18.0 | 13.0-15.0 | ||||||||
| AS3220 | 20.0 | 15.0-17.0 | ||||||||
| AS3225 | 25.0 | 17.0-22.0 | ||||||||
| 4.0 +0.08 -0.15 |
AS4006 | 6.0 | 1.0-3.0 | 6.9-8.4 | 1.7 | 2.45 | 27.00 | 4.1-4.2 | 1250 N | 1800 N |
| AS4008 | 8.0 | 3.0-5.0 | ||||||||
| AS4010 | 10.0 | 5.0-6.5 | ||||||||
| AS4012 | 12.0 | 6.5-8.5 | ||||||||
| AS4014 | 14.0 | 8.5-10.5 | ||||||||
| AS4016 | 16.0 | 8.5-12.5 | ||||||||
| AS4018 | 18.0 | 12.5-14.5 | ||||||||
| AS4020 | 20.0 | 12.5-16.5 | ||||||||
| AS4025 | 25.0 | 16.5-21.0 | ||||||||
| AS4030 | 30.0 | 21.5-26.0 | ||||||||
| AS4035 | 35.0 | 26.0-30.0 | ||||||||
| 4.8 +0.08 -0.15 |
AS4806 | 6.0 | 1.5-2.5 | 8.3-10.1 | 2.0 | 2.95 | 28.00 | 4.9-5.0 | 1850 N | 2600 N |
| AS4808 | 8.0 | 2.5-4.0 | ||||||||
| AS4810 | 10.0 | 4.0-6.0 | ||||||||
| AS4812 | 12.0 | 6.0-8.0 | ||||||||
| AS4814 | 14.0 | 7.5-9.5 | ||||||||
| AS4816 | 16.0 | 8.0-12.0 | ||||||||
| AS4818 | 18.0 | 12.0-14.0 | ||||||||
| AS4820 | 20.0 | 12.0-16.0 | ||||||||
| AS4825 | 25.0 | 16.0-21.0 | ||||||||
| AS4830 | 30.0 | 21.0-25.0 | ||||||||
| AS4835 | 35.0 | 25.0-30.0 | ||||||||
| AS4840 | 40.0 | 30.0-35.0 | ||||||||
| 6.4 +0.08 -0.15 |
AS6410 | 10.0 | 3.0-4.0 | 11.6-13.4 | 2.7 | 3.90 | 32.00 | 6.5-6.6 | 3400 N | 4850 N |
| AS6412 | 12.0 | 3.0-6.0 | ||||||||
| AS6414 | 14.0 | 6.0-8.0 | ||||||||
| AS6416 | 16.0 | 6.0-10.0 | ||||||||
| AS6418 | 18.0 | 10.0-12.0 | ||||||||
| AS6420 | 20.0 | 12.0-14.0 | ||||||||
| AS6425 | 25.0 | 14.0-18.0 | ||||||||
| AS6430 | 30.0 | 18.0-23.0 | ||||||||
| AS6435 | 35.0 | 23.0-28.0 | ||||||||
| AS6440 | 40.0 | 28.0-33.0 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Blind Rivet Application
Blind Rivet have a wide range of applications in various industries and settings. Most of them are used in:

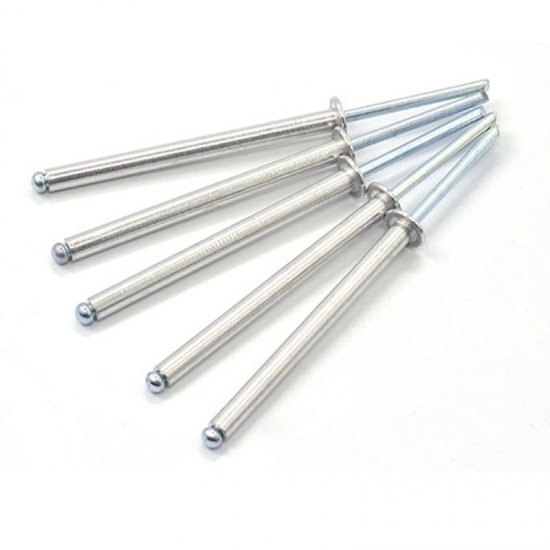

Open End Blind Rivets are for fastening where there is no access to the opposite side of work. Alumi...
Open End Countersunk Head Blind Rivets provides a neat and flat surface for the joint. This enables ...

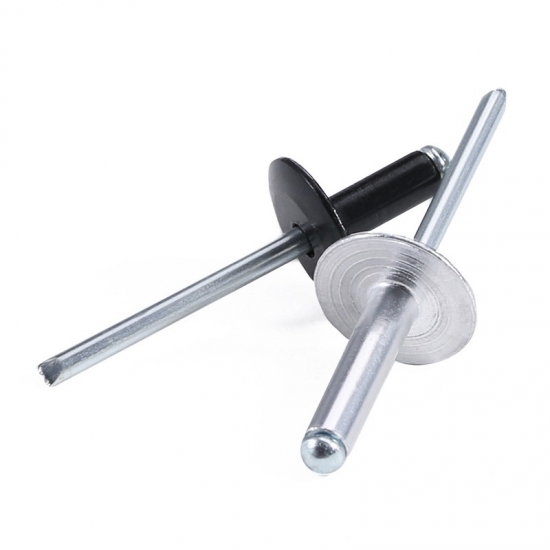

Large flange blind rivets offer enhanced fastening capabilities for applications involving sheet met...

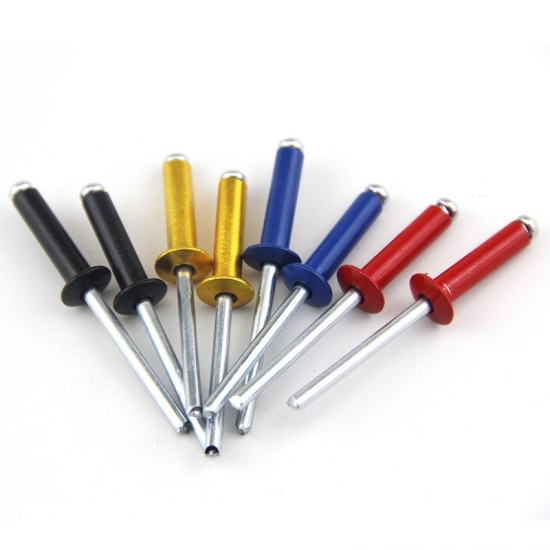

Color Painted rivets offer a customized or enhanced appearance with their painted heads that can als...
Peel rivet is a type of blind rivet designed to improve support in brittle, soft or ductile material...
Grooved Rivets are specifically designed for installation in holes made of fibrous materials, such a...
Grounding blind rivets offer a simple and reliable way of grounding a product. The grounding conduct...
Copper Open End Blind Rivets are commonly used for fastening copper or brass sheets.
