Open End Blind Rivets are for fastening where there is no access to the opposite side of work. Aluminum Steel Dome Head Open End Blind Rivets are the most commonly used type and most sizes are in stock, so punctual delivery is guaranteed.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc plated, Color painted( Black, etc.)Min order:
1000pcsLead Time:
7-35 daysChina Supplier Dome Head Open End Blind Rivets

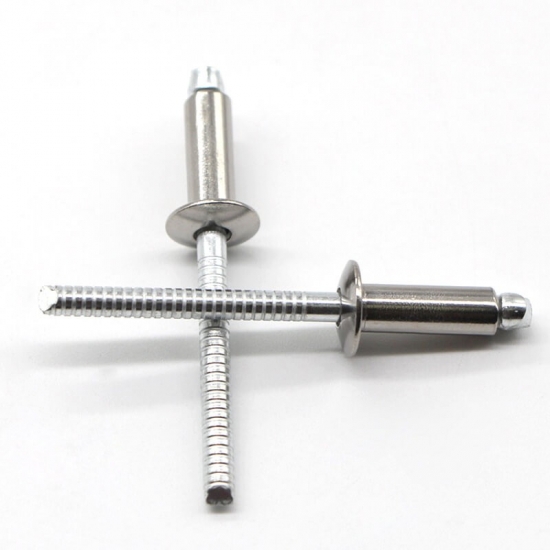

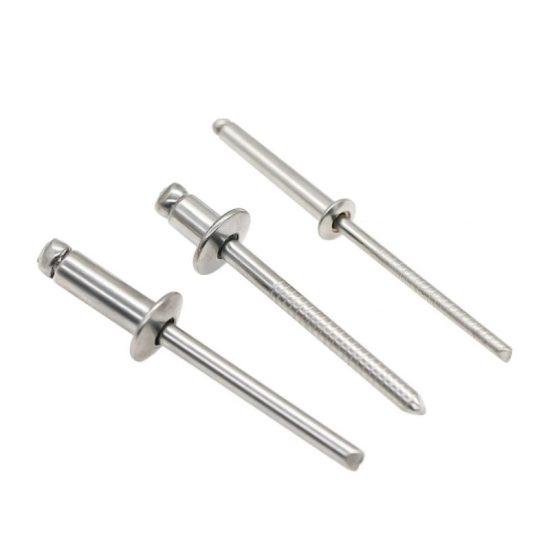

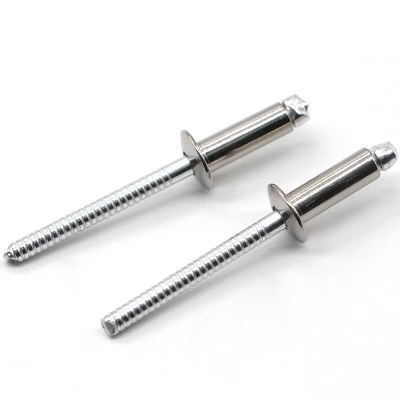

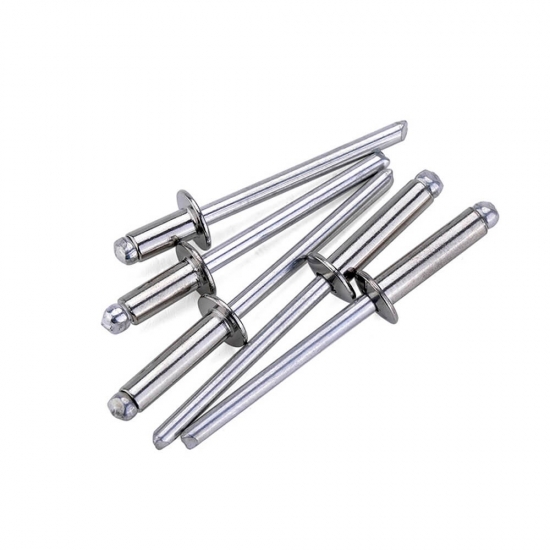

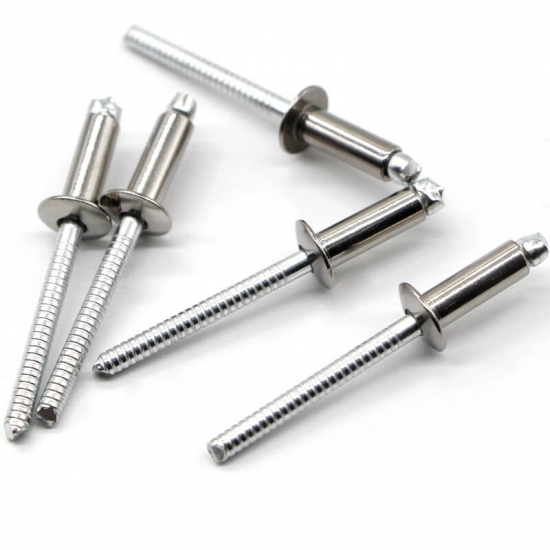

Dome head open end blind rivets consist of a body and mandrel, making it suitable for applications that require accessibility from only one side of the material.
During production, the round mandrel head is flattened on both sides. Then during rivet installation, when the mandrel passes through the rivet body, the rivet body folds around these two contours. The result is an oval shape at the end of the rivet body. This oval encapsulates the mandrel head, preventing the mandrel from falling off or rattling during application.
Providing a strong, low-cost fastener, dome head open blind rivets do well in most industrial riveting applications where the material to be fastened does not have high load-bearing requirements.
Diameter sizes from 2.4 to 6.4mm (3/32 to 1/4).
Available materials: Steel, Aluminum, Stainless, Copper, Brass, Monel
Monel options are particularly suitable for marine and other corrosive atmospheres.
Material (Body/Mandrel)
Aluminum/ Aluminum
Aluminum/ Steel
Aluminum/ Stainless steel
Steel/ Steel
Stainless Steel/ Steel
Stainless Steel/ Stainless Steel
Copper/ Steel
Copper/ Bronze
Monel/ Steel

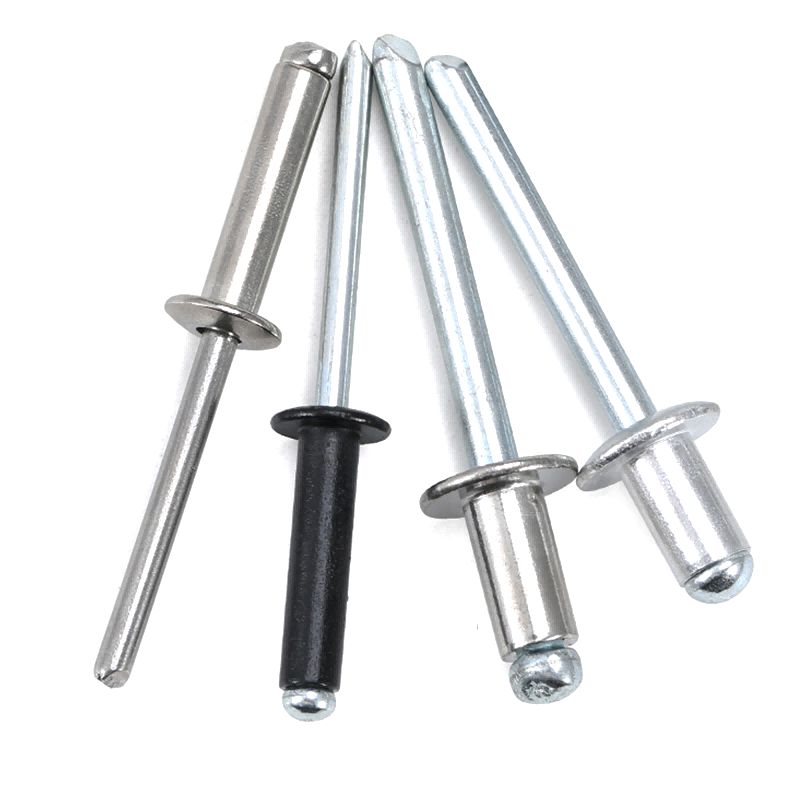

Color painting is available.
Head Style
Dome Head Rivets
Dome head blind rivet, also called round or flat head blind rivet, is the most commonly used type with a lower profile head that is approximately twice the diameter of the rivet body. This provides sufficient load-bearing surface for almost applications where metals are being joined.
Countersunk Head Rivets
Large Flange Head Rivets
Advantages
Design of the stem head ensures it stays in place after installation.
High strength, low cost fastener.
Available in a variety of materials.
Ideal for a wide range of applications.
High installation efficiency.
Aluminum/ Steel Dome Head Open End Blind Rivet
RIVET DIAMETER /mm |
PART NUMBER |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
D1 | L | D2 | k | d | p | DRILL | ||||
+1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | ||||
2.4 +0.08 -0.15 |
AS2404 | 4.0 | 0.5-2.0 | 4.2-5.0 | 1.0 | 1.55 | 26.00 | 2.5-2.6 | 250 N | 350 N |
AS2406 | 6.0 | 2.0-4.0 | ||||||||
AS2408 | 8.0 | 4.0-6.0 | ||||||||
AS2410 | 10.0 | 6.0-8.0 | ||||||||
AS2412 | 12.0 | 8.0-9.5 | ||||||||
3.0 +0.08 -0.15 |
AS3006 | 6.0 | 1.5-3.5 | 5.4-6.3 | 1.3 | 2.00 | 3.1-3.2 | 550 N | 850 N | |
AS3008 | 8.0 | 3.0-5.0 | ||||||||
AS3010 | 10.0 | 5.0-7.0 | ||||||||
AS3012 | 12.0 | 7.0-9.0 | ||||||||
AS3014 | 14.0 | 9.0-11.0 | ||||||||
AS3016 | 16.0 | 11.0-13.0 | ||||||||
AS3018 | 18.0 | 13.0-15.0 | ||||||||
AS3020 | 20.0 | 15.0-17.0 | ||||||||
3.2 +0.08 -0.15 |
AS3206 | 6.0 | 1.5-3.5 | 5.8-6.7 | 1.3 | 2.00 | 3.3-3.4 | 750 N | 1100 N | |
AS3208 | 8.0 | 3.5-5.0 | ||||||||
AS3210 | 10.0 | 5.0-7.0 | ||||||||
AS3212 | 12.0 | 7.0-9.0 | ||||||||
AS3214 | 14.0 | 9.0-11.0 | ||||||||
AS3216 | 16.0 | 9.0-13.0 | ||||||||
AS3218 | 18.0 | 13.0-15.0 | ||||||||
AS3220 | 20.0 | 15.0-17.0 | ||||||||
AS3225 | 25.0 | 17.0-22.0 | ||||||||
4.0 +0.08 -0.15 |
AS4006 | 6.0 | 1.0-3.0 | 6.9-8.4 | 1.7 | 2.45 | 27.00 | 4.1-4.2 | 1250 N | 1800 N |
AS4008 | 8.0 | 3.0-5.0 | ||||||||
AS4010 | 10.0 | 5.0-6.5 | ||||||||
AS4012 | 12.0 | 6.5-8.5 | ||||||||
AS4014 | 14.0 | 8.5-10.5 | ||||||||
AS4016 | 16.0 | 8.5-12.5 | ||||||||
AS4018 | 18.0 | 12.5-14.5 | ||||||||
AS4020 | 20.0 | 12.5-16.5 | ||||||||
AS4025 | 25.0 | 16.5-21.0 | ||||||||
AS4030 | 30.0 | 21.5-26.0 | ||||||||
AS4035 | 35.0 | 26.0-30.0 | ||||||||
4.8 +0.08 -0.15 |
AS4806 | 6.0 | 1.5-2.5 | 8.3-10.1 | 2.0 | 2.95 | 28.00 | 4.9-5.0 | 1850 N | 2600 N |
AS4808 | 8.0 | 2.5-4.0 | ||||||||
AS4810 | 10.0 | 4.0-6.0 | ||||||||
AS4812 | 12.0 | 6.0-8.0 | ||||||||
AS4814 | 14.0 | 7.5-9.5 | ||||||||
AS4816 | 16.0 | 8.0-12.0 | ||||||||
AS4818 | 18.0 | 12.0-14.0 | ||||||||
AS4820 | 20.0 | 12.0-16.0 | ||||||||
AS4825 | 25.0 | 16.0-21.0 | ||||||||
AS4830 | 30.0 | 21.0-25.0 | ||||||||
AS4835 | 35.0 | 25.0-30.0 | ||||||||
AS4840 | 40.0 | 30.0-35.0 | ||||||||
6.4 +0.08 -0.15 |
AS6410 | 10.0 | 3.0-4.0 | 11.6-13.4 | 2.7 | 3.90 | 32.00 | 6.5-6.6 | 3400 N | 4850 N |
AS6412 | 12.0 | 3.0-6.0 | ||||||||
AS6414 | 14.0 | 6.0-8.0 | ||||||||
AS6416 | 16.0 | 6.0-10.0 | ||||||||
AS6418 | 18.0 | 10.0-12.0 | ||||||||
AS6420 | 20.0 | 12.0-14.0 | ||||||||
AS6425 | 25.0 | 14.0-18.0 | ||||||||
AS6430 | 30.0 | 18.0-23.0 | ||||||||
AS6435 | 35.0 | 23.0-28.0 | ||||||||
AS6440 | 40.0 | 28.0-33.0 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
