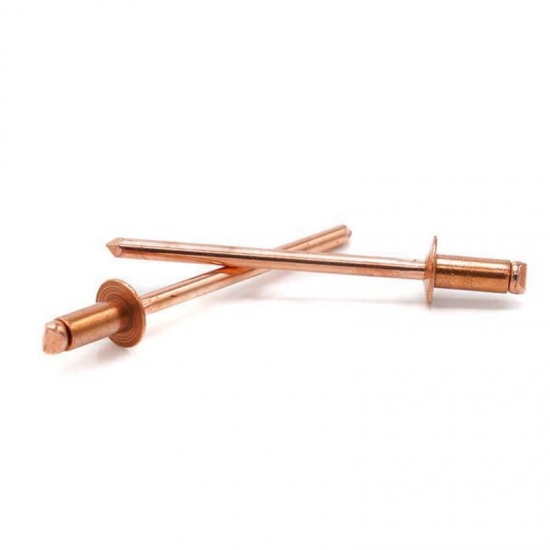

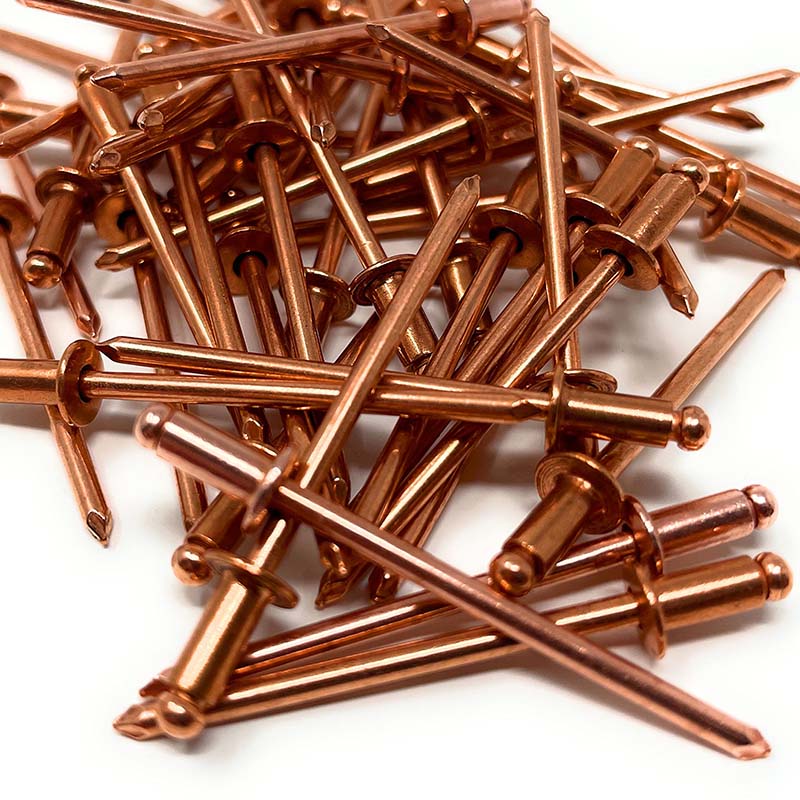

Copper brass open end blind rivet consists of a copper body and a brass mandrel. It is commonly used for fastening copper or brass sheets.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Copper PlatedMin order:
1000pcsLead Time:
7-35 daysCheap Price Brass Copper Open End Blind Rivets
Copper brass open end blind rivet consists of a copper body and a brass mandrel. It is commonly used for fastening copper or brass sheets.

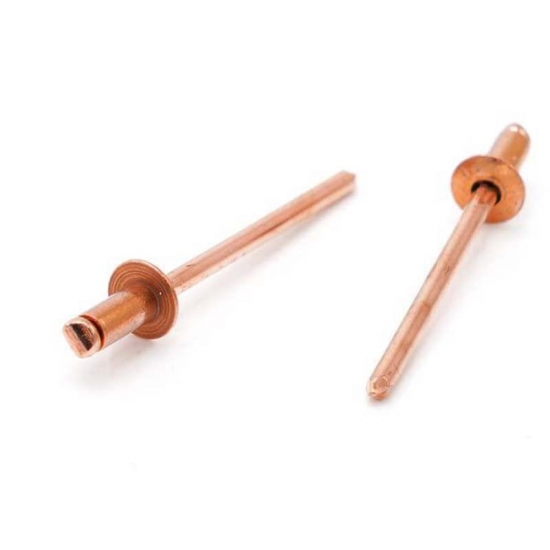

During production, the round mandrel head is flattened on both sides. Then during rivet installation, when the mandrel passes through the rivet body, the rivet body folds around these two contours. The result is an oval shape at the end of the rivet body. This oval encapsulates the mandrel head, preventing the mandrel from falling off or rattling during application.
Diameter sizes from 3.2mm.
Material (Body/Mandrel)
Copper/ Brass
Head Style
Dome Head Rivets
Countersunk Head Rivets
Advantages
Great for a wide variety of applications and commonly used for for fastening copper or brass sheets.
Perfect for most environments because of their superior thermal and electrical conductivity.

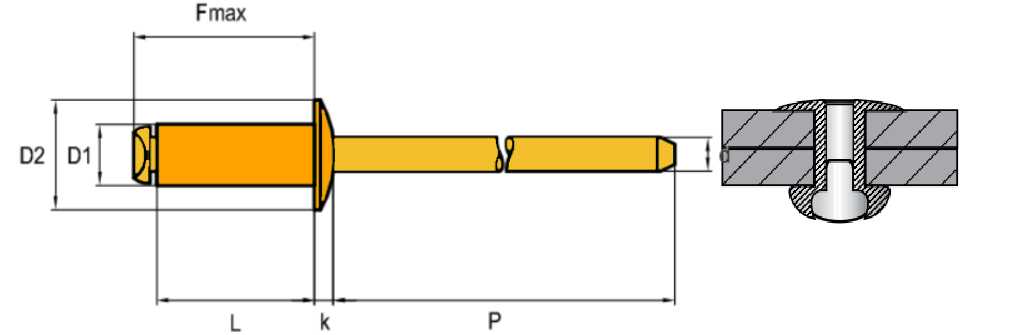

Datasheets
| RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
| D1 | L |  |
D2 | k | d | p | DRILL |  |
 |
| +1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
| 3.2 +0.08 -0.15 |
5.0 | 0.5-2.0 | 5.8-6.7 | 1.3 | 2.15 | 26.00 | 3.3-3.4 | 800 N | 1000 N |
| 6.0 | 2.0-3.0 | ||||||||
| 8.0 | 3.0-5.0 | ||||||||
| 9.0 | 4.0-6.0 | ||||||||
| 10.0 | 5.0-7.0 | ||||||||
| 12.0 | 7.0-9.0 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
Open End Blind Rivets are for fastening where there is no access to the opposite side of work. Alumi...
Open End Countersunk Head Blind Rivets provides a neat and flat surface for the joint. This enables ...
Large flange blind rivets offer enhanced fastening capabilities for applications involving sheet met...
Color Painted rivets offer a customized or enhanced appearance with their painted heads that can als...
Peel rivet is a type of blind rivet designed to improve support in brittle, soft or ductile material...
Grooved Rivets are specifically designed for installation in holes made of fibrous materials, such a...
Grounding blind rivets offer a simple and reliable way of grounding a product. The grounding conduct...
Copper Open End Blind Rivets are commonly used for fastening copper or brass sheets.
