Knurled body threaded inserts enhance torque-to-turn resistance by up to 50% in softer materials compared to plain round body inserts, and it also enhances electrical continuity in sheet metal fixings.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc, Black, Dacromet, Geomet, etcMin order:
1000pcsLead Time:
7-35daysReduced Flat Head Knurled Body Rivet Nuts
Knurled body threaded inserts enhance torque-to-turn resistance by up to 50% in softer materials compared to plain round body inserts, and it also enhances electrical continuity in sheet metal fixings.
Knurled body rivet nuts can be installed in pre-painted applications without damaging the surface. The materials aluminum, stainless steel, steel with zinc plated are available to increase corrosion resistance.
Rivet Nuts Are Used In A Variety Of Industries:
|
|
Rivet Nut Head Type
Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.
Rivet Nut Body Type
Common Material Used For Solid Rivet
Selecting A Blind Rivet Nut
Thread Sizes: M4 – M10

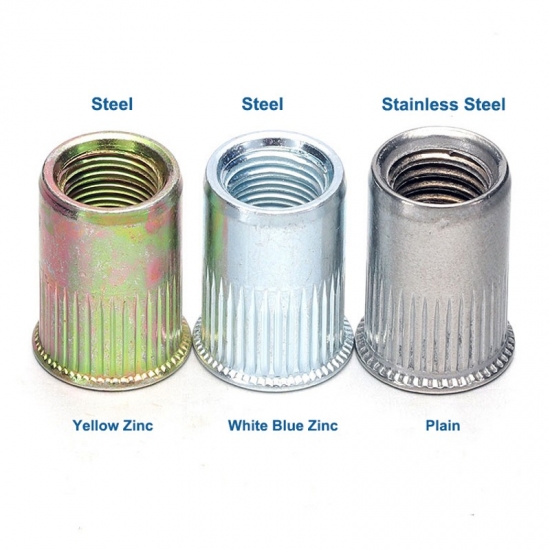

Material: Aluminium, steel, stainless steel A2 & A4
Head Styles: Flat, countersunk,large flange, reduced
Body: Round with and without splines, Half Hex, Full Hex
Option:Closed end, Open end
Hole Size: Metric, Inch

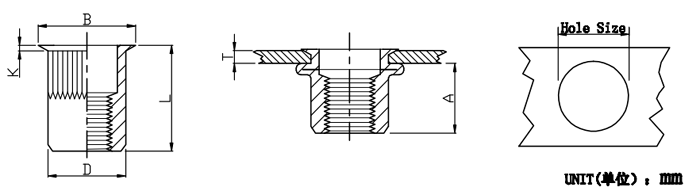

| Thread | T(GRIP RANGE) | A | Hole Size | D | B | K | L | ||
| Min | Max | Ref | 0.1 | 0.07 | |||||
| 0 | -0.1 | ||||||||
| M4*0.7 | 0.5-2.0 | 6.5 | 6 | 5.9 | 7 | 0.2 | 0.5±0.1 | 10.5±0.25 | |
| -0.1 | |||||||||
| M5*0.8 | 0.5-2.0 | 7.2 | 7 | 6.9 | 8 | 0.25 | 0.5±0.1 | 11.5±0.25 | |
| -0.1 | |||||||||
| M6*1.0 | 0.5-2.5 | 8.7 | 9 | 8.9 | 10 | 0.25 | 0.6±0.15 | 14.0±0.3 | |
| -0.1 | |||||||||
| M8*1.25 | 0.5-3.0 | 10.5 | 11 | 10.9 | 12 | 0.25 | 0.65±0.15 | 16.5±0.3 | |
| -0.1 | |||||||||
| M10*1.5 | 1.0-3.5 | 10.7 | 13 | 12.9 | 14 | 0.35 | 0.7±0.15 | 17.7±0.3 | |
The hexagonal body prevents this from turning, making this type of rivet nut widely preferred for re...
Reduced head knurled closed end rivet nuts imporove torque-to-turn resistance for softer materials a...
Flat head round body close end rivet nuts offers a quick, reliable and low-cost solution for i...
Closed end rivet nuts provide a 100% watertight connection, ensuring that the thread remains unaffec...
Flat head full hex blind rivet nuts feature a hexagonal body, a large flange and a close end, result...
The full hex increases its body diameter, enhancing thread strength and torque capability.
Semi hex body close end threaded inserts feature a half hex and a half round body, so it is not only...
Reduced head closed end threaded inserts provide a strong captivated thread in thin materials and in...
