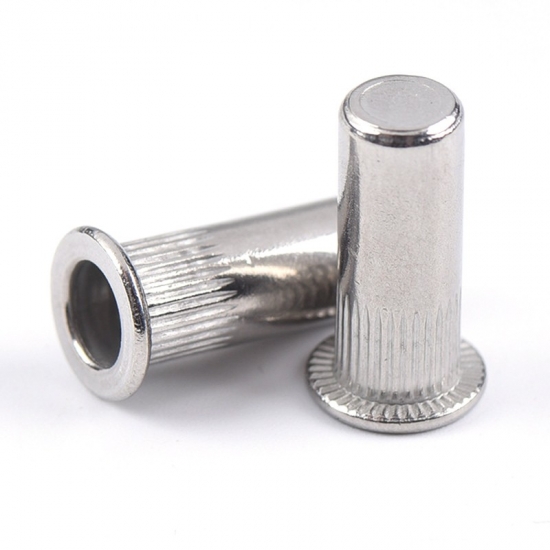

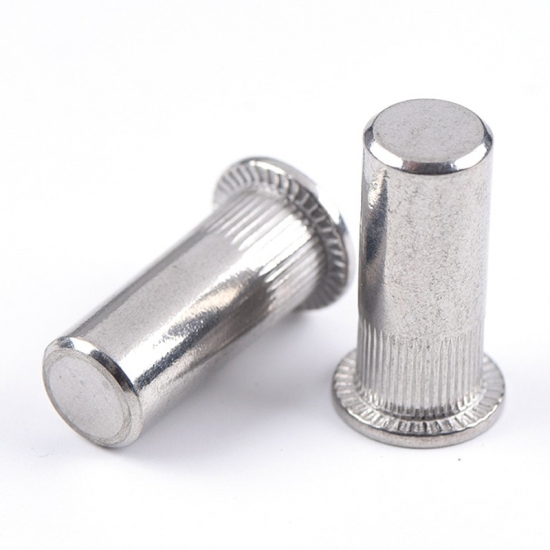

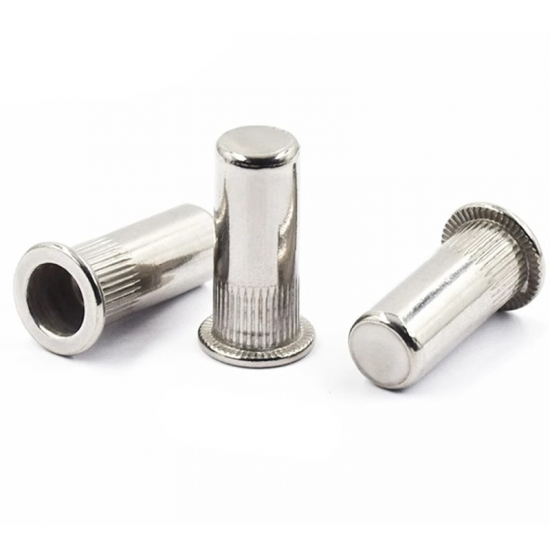

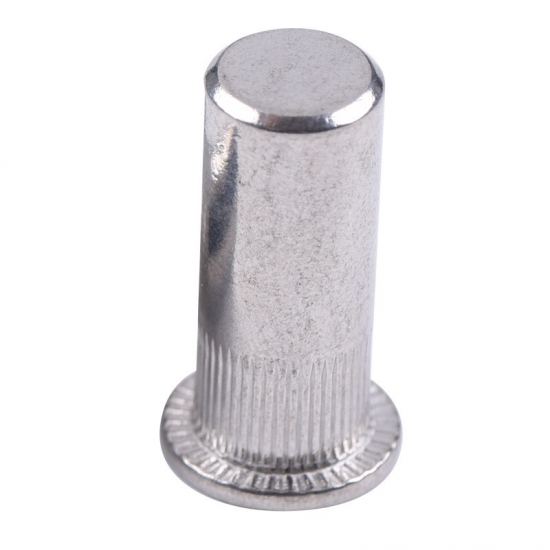

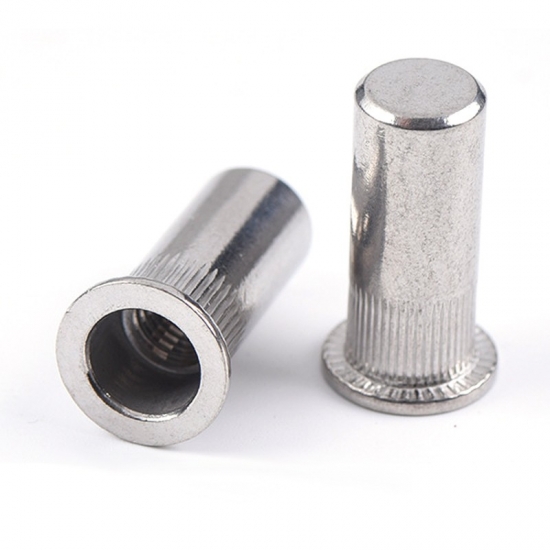

Factory Price Flat Head Knurled Blind Rivet Nuts

Factory Price Flat Head Knurled Blind Rivet Nuts

Closed end rivet nuts provide a 100% watertight connection, ensuring that the thread remains unaffected by water or dirt. This makes them a reliable choice for electrical circuits, as they prevent any fluids from entering. Knurled large flange rivet nuts Knurled body effectively prevents its spinout and hold rivet nut in place.

The cohesive rivet nut, sometimes called a blind rivet, threaded insert, or rivnut, features threading and a counterbore. This unique design allows it to be securely anchored from one side, just like a blind bolt. Unlike traditional nuts, it can be installed blindly from the front side, eliminating the need for backside access. By using a rivet nut install tool, the internal threads of the rivet nut are pulled up to create a secure bulge on the backside of the parent application.

Rivet Nuts Are Used In A Variety Of Industries:

Advantages of Rivet Nuts

• Provide a strong thread in thin materials
• Perfect for effortless disassembling and reassembling of goods,
• install in a diverse range of materials: steel, plastic, fiberglass, and beyond,
• Once installed, additional threaded components can be attached
• Preserves the integrity of pre-painted material during installation,
• An exemplary alternative to weld nut,
• Enhances efficiency with a straightforward installation,
• Does not compromise the structural integrity of the underlying material,

Rivet Nut Head Type

Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.

• Ribbed Rivet Nut
• Flat Head Rivet Nut
• Reduced Head Rivet Nut
• Countersunk Head Rivet Nut
• Reduced Hex Head Rivet Nut
• Large Flange Head Rivet Nut

Rivet Nut Body Type

• Round Body Rivet Nut
• Knurled Body Rivet Nut
• Full Hex Body Rivet Nut
• Semi-Hex Body Rivet Nut
• Slotted Body Rivet Nut
• Square Body Rivet Nut

Common Material Used For Solid Rivet

• Steel ((finished in Zinc Plate)
• Stainless steel 304 & SS316 (plain finish)
• Aluminum (plain finish)

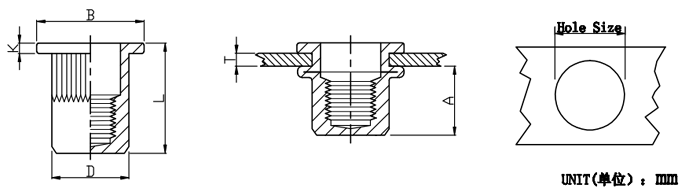

Selecting A Blind Rivet Nut

• Thread size: rivet nuts range from M3 to M12 thread sizes dependent upon the rivet nut.
• Grip range: The blind rivet nut should be selected to ensure that the thicknesses of the parent material(s) falls within the grip range.
• Hole size: This is specified on the relevant technical data page for the rivet nut. Allowance for coating the parent material should be made to avoid an undersized hole.
• Special features: Additional features such as low profile, large flange, closed end and countersunk are available within the standard range of products.
• Torque-to-turn: Resistance is dependent upon the body shape and increases in the series: round, splined, hexagonal and square
• Corrosion resistance : The selection of the material type and coating of the rivet nut should be made on the basis of the corrosion resistance required.

Thread Sizes: M4 – M10

Material: Aluminium, steel, stainless steel A2 & A4

Head Styles: Flat, countersunk,large flange, reduced

Body: Round with and without splines, Half Hex, Full Hex

Option:Closed end, Open end

Hole Size: Metric, Inch
