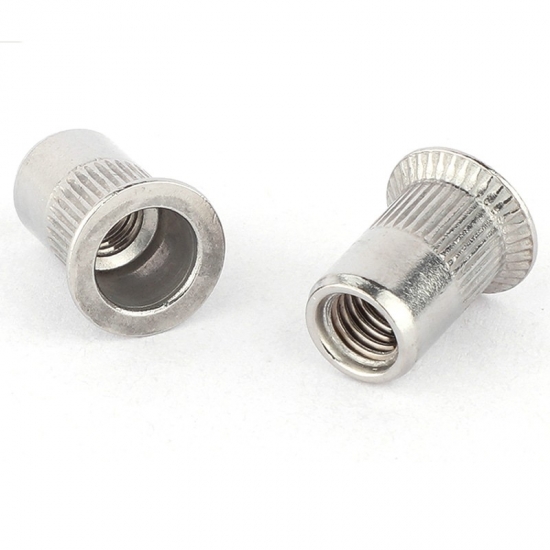

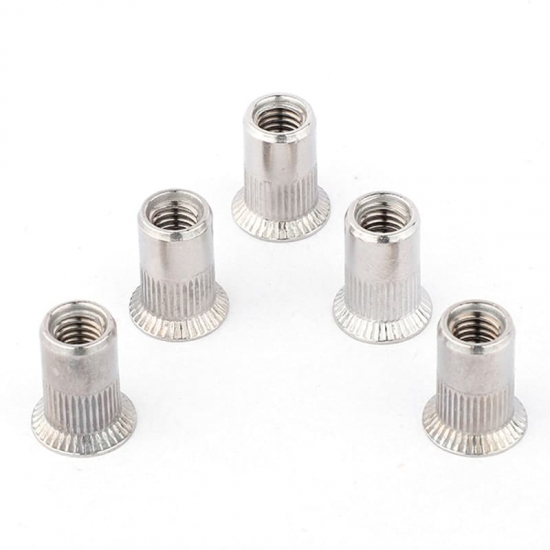

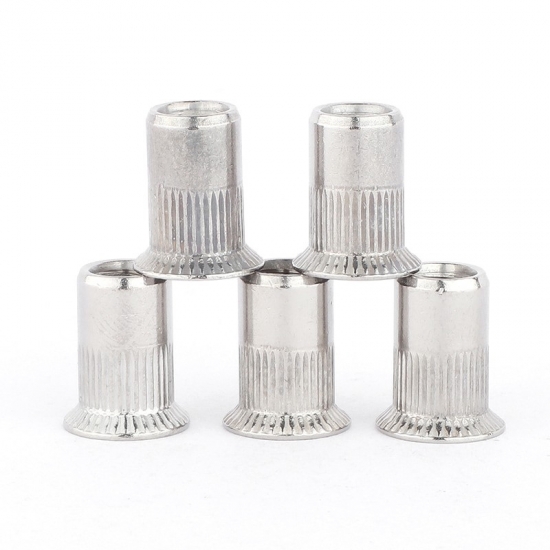

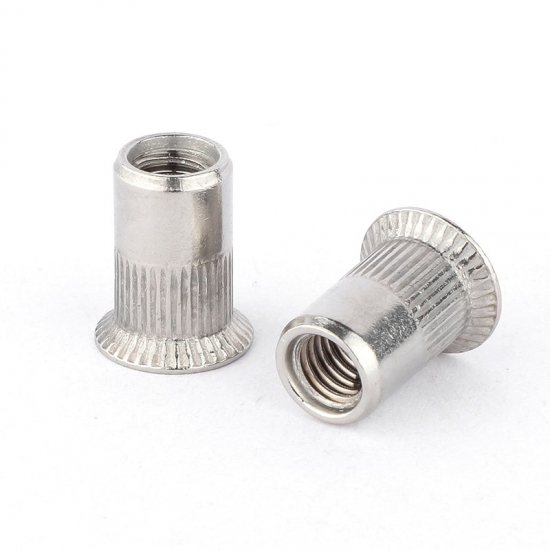

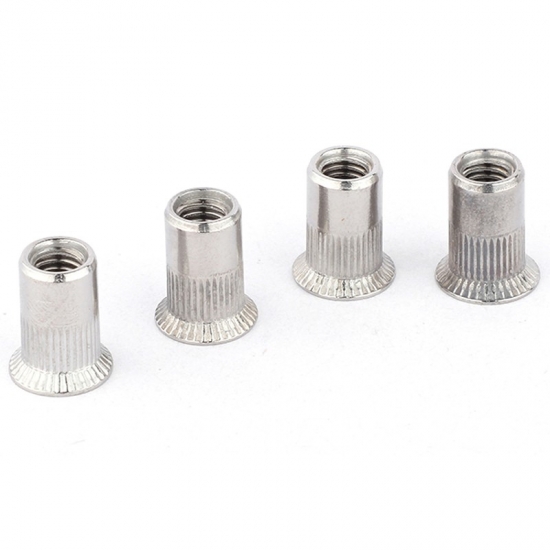

Countersunk Round Head Knurled Body Rivet Nuts

Countersunk Round Head Knurled Body Rivet Nuts

Knurled body rivet nuts feature increased torque strength, extreme vibration resistance and 360° knurled expansion. These advantages provide simple, easy installation, which can save time and cost over other methods. Meanwhile, they don't damage material surface during installation.

Rivet Nuts Are Used In A Variety Of Industries:

Advantages of Rivet Nuts

• Provide a strong thread in thin materials
• Perfect for effortless disassembling and reassembling of goods,
• install in a diverse range of materials: steel, plastic, fiberglass, and beyond,
• Once installed, additional threaded components can be attached
• Preserves the integrity of pre-painted material during installation,
• An exemplary alternative to weld nut,
• Enhances efficiency with a straightforward installation,
• Does not compromise the structural integrity of the underlying material,

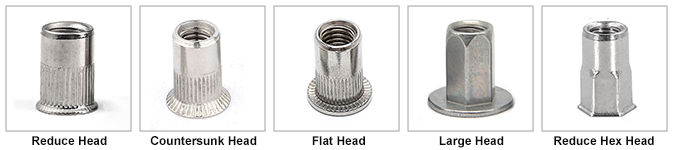

Rivet Nut Head Type

Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.

• Ribbed Rivet Nut
• Flat Head Rivet Nut
• Reduced Head Rivet Nut
• Countersunk Head Rivet Nut
• Reduced Hex Head Rivet Nut
• Large Flange Head Rivet Nut

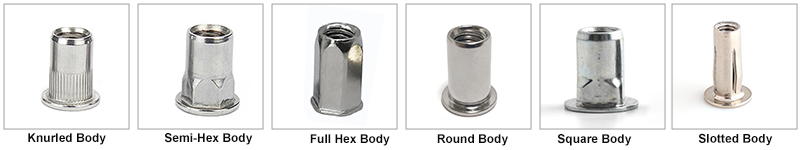

Rivet Nut Body Type

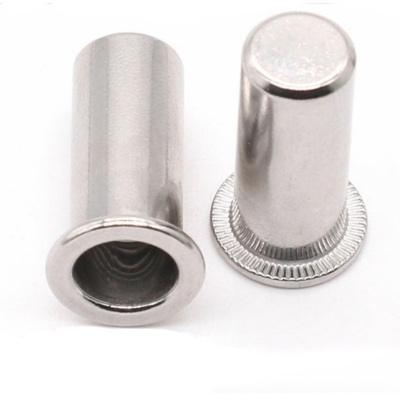

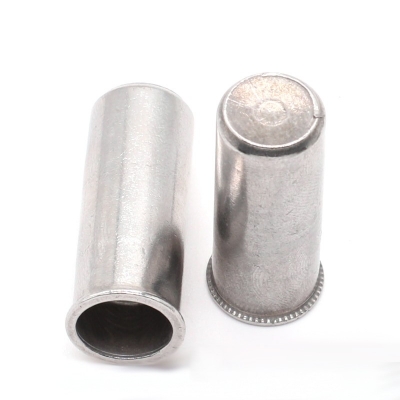

• Round Body Rivet Nut

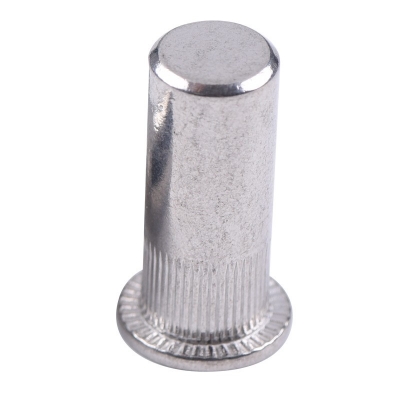

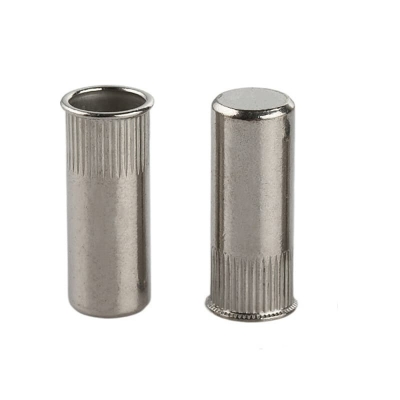

• Knurled Body Rivet Nut

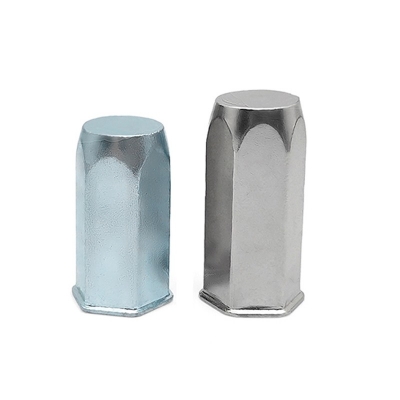

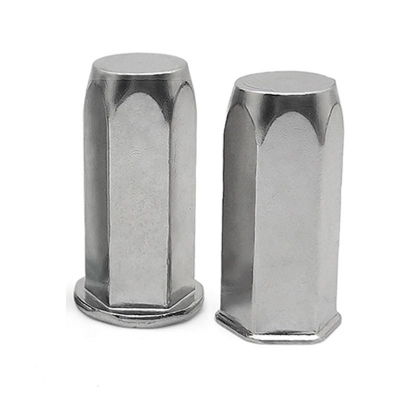

• Full Hex Body Rivet Nut
• Semi-Hex Body Rivet Nut
• Slotted Body Rivet Nut
• Square Body Rivet Nut

Common Material Used For Solid Rivet

• Steel ((finished in Zinc Plate)
• Stainless steel 304 & SS316 (plain finish)
• Aluminum (plain finish)

Selecting A Blind Rivet Nut

• Thread size: rivet nuts range from M3 to M12 thread sizes dependent upon the rivet nut.
• Grip range: The blind rivet nut should be selected to ensure that the thicknesses of the parent material(s) falls within the grip range.

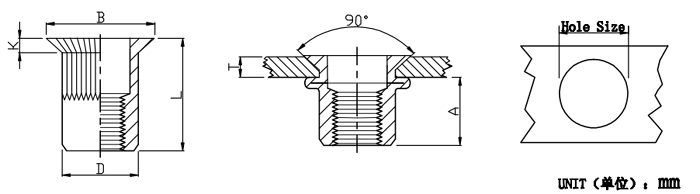

• Hole size: This is specified on the relevant technical data page for the rivet nut. Allowance for coating the parent material should be made to avoid an undersized hole.
• Special features: Additional features such as low profile, large flange, closed end and countersunk are available within the standard range of products.
• Torque-to-turn: Resistance is dependent upon the body shape and increases in the series: round, splined, hexagonal and square
• Corrosion resistance : The selection of the material type and coating of the rivet nut should be made on the basis of the corrosion resistance required.

Thread Sizes: M4 – M10

Material: Aluminium, steel, stainless steel A2 & A4

Head Styles: Flat, countersunk,large flange, reduced

Body: Round with and without splines, Half Hex, Full Hex

Option:Closed end, Open end

Hole Size: Metric, Inch
