Reduced Hex Head Semi Hex Body Close End Rivet Nuts

Reduced Hex Head Semi Hex Body Close End Rivet Nuts

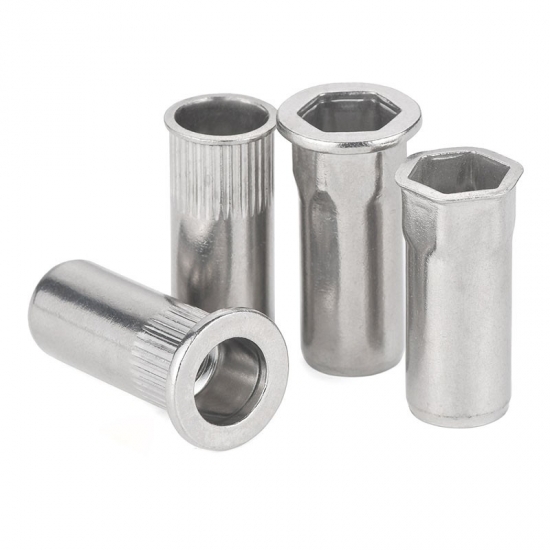

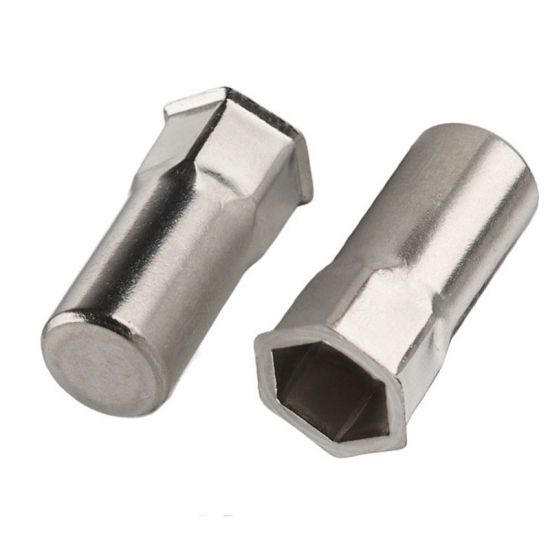

Semi hex body close end threaded inserts feature a half hex and a half round body, so it is not only installed easily and fast, but also improves the torque-to-turn and pull-out performance, easpecially used in soft metals. Addtionally, close end increases water resistance, making this rivet nut an ideal choice for electrical circuits.

A rivet nut, also known as a blind rivet, threaded insert, or rivnut, is a tubular insert with threading and a counterbore that allows it to be securely anchored from one side, similar to a blind bolt. It can be installed without access to the backside, using a tool that pulls its internal threads to create a secure bulge on the parent application's backside.

Rivet Nuts Are Used In A Variety Of Industries:

Advantages of Rivet Nuts

• Provide a strong thread in thin materials
• Perfect for effortless disassembling and reassembling of goods,
• install in a diverse range of materials: steel, plastic, fiberglass, and beyond,
• Once installed, additional threaded components can be attached
• Preserves the integrity of pre-painted material during installation,
• An exemplary alternative to weld nut,
• Enhances efficiency with a straightforward installation,
• Does not compromise the structural integrity of the underlying material,

Rivet Nut Head Type

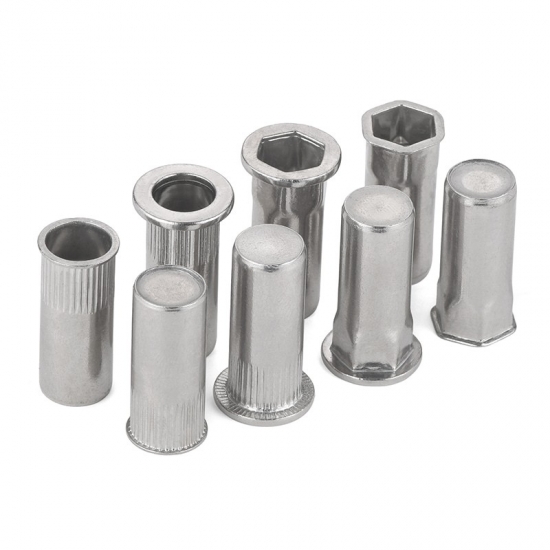

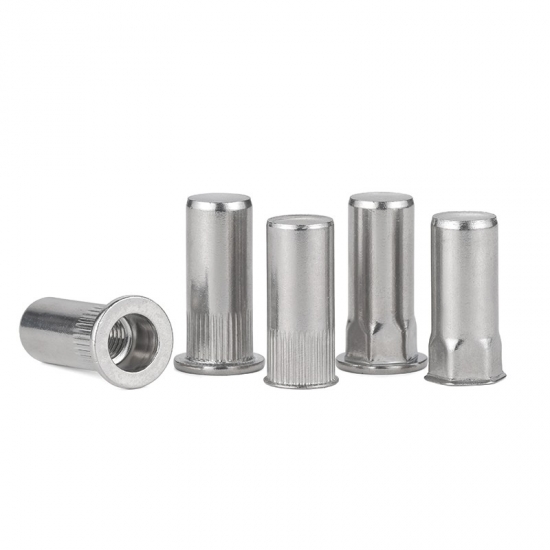

Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.

• Ribbed Rivet Nut

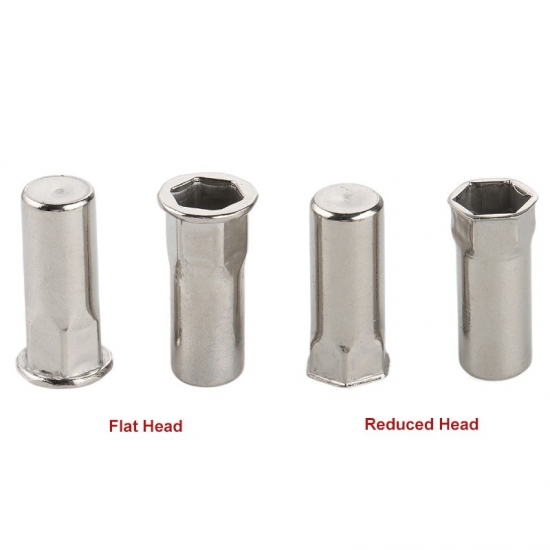

• Flat Head Rivet Nut
• Reduced Head Rivet Nut
• Countersunk Head Rivet Nut
• Reduced Hex Head Rivet Nut
• Large Flange Head Rivet Nut

Rivet Nut Body Type

• Round Body Rivet Nut
• Knurled Body Rivet Nut
• Full Hex Body Rivet Nut
• Semi-Hex Body Rivet Nut
• Slotted Body Rivet Nut
• Square Body Rivet Nut

Common Material Used For Solid Rivet

• Steel ((finished in Zinc Plate)
• Stainless steel 304 & SS316 (plain finish)
• Aluminum (plain finish)

Selecting A Blind Rivet Nut

• Thread size: rivet nuts range from M3 to M12 thread sizes dependent upon the rivet nut.
• Grip range: The blind rivet nut should be selected to ensure that the thicknesses of the parent material(s) falls within the grip range.
• Hole size: This is specified on the relevant technical data page for the rivet nut. Allowance for coating the parent material should be made to avoid an undersized hole.
• Special features: Additional features such as low profile, large flange, closed end and countersunk are available within the standard range of products.
• Torque-to-turn: Resistance is dependent upon the body shape and increases in the series: round, splined, hexagonal and square
• Corrosion resistance : The selection of the material type and coating of the rivet nut should be made on the basis of the corrosion resistance required.

Thread Sizes: M4 – M10

Material: Aluminium, steel, stainless steel A2 & A4

Head Styles: Reduced

Body: Half Hex

Option:Closed end, Open end

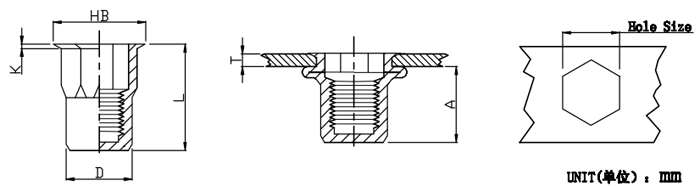

Hole Size: Metric, Inch
