Reduced head closed end threaded inserts provide a strong captivated thread in thin materials and in applications where only one side of the sheet is accessible such as box or tube section.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc, Black, Dacromet, Geomet, etcMin order:
1000pcsLead Time:
7-35daysWholesale Price Reduced Head Round Insert Rivet Nuts

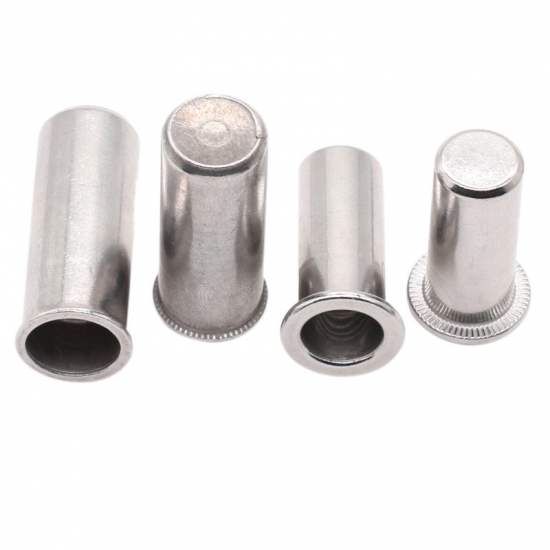

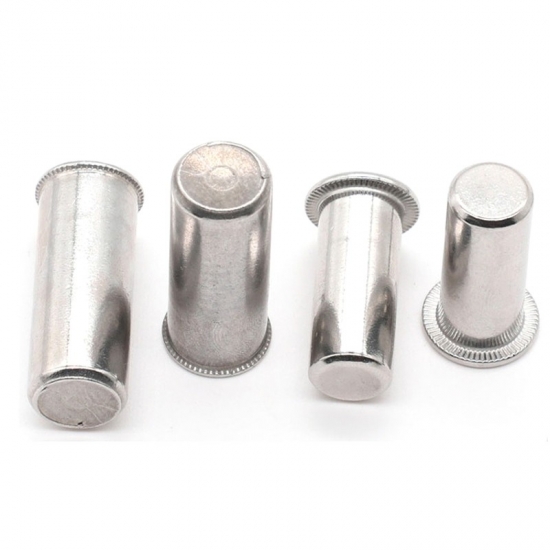

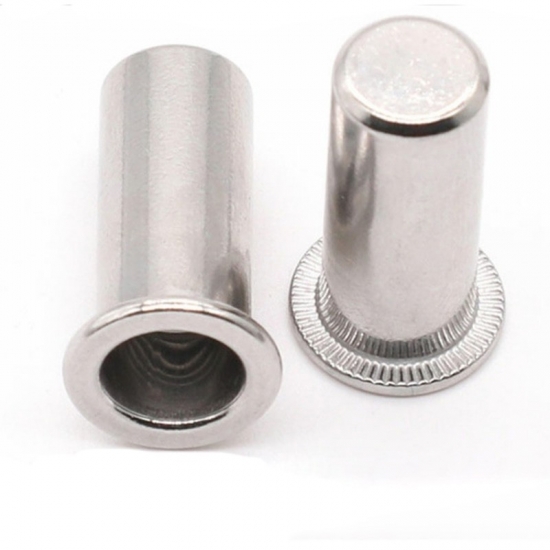

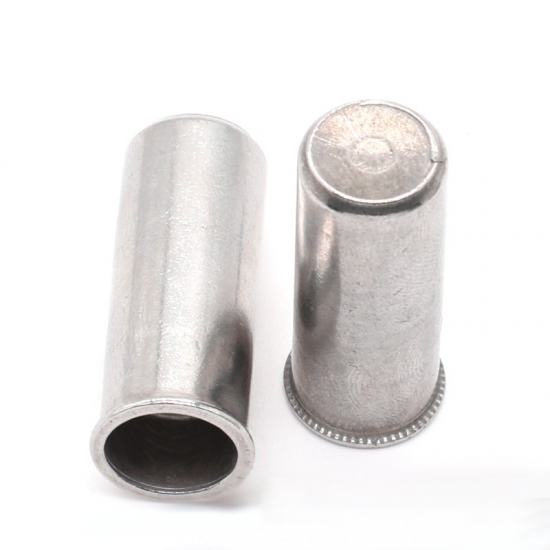

Reduced head closed end threaded inserts provide a strong captivated thread in thin materials and in applications where only one side of the sheet is accessible such as box or tube section. Steel, stainless steel and aluminum are available. They can be installed into materials as thin as 0.5mm and feature 100% waterproof abilities.
Rivet Nuts Are Used In A Variety Of Industries:
|
|
Rivet Nut Head Type
Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.
Rivet Nut Body Type
Common Material Used For Solid Rivet
Selecting A Blind Rivet Nut
Thread Sizes: M4 – M10
Material: Aluminium, steel, stainless steel A2 & A4
Head Styles: Flat, countersunk,large flange, reduced
Body: Round with and without splines, Half Hex, Full Hex
Option:Closed end, Open end
Hole Size: Metric, Inch

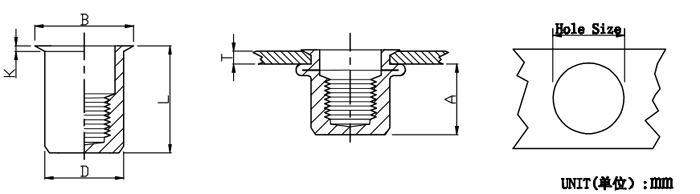

| Thread | T(GRIP RANGE) | A | Hole Size | D | B | K | L | ||
| Min | Max | Ref | 0.1 | 0.07 | |||||
| 0 | -0.1 | ||||||||
| M4*0.7 | 0.5-2.0 | 11 | 6 | 5.9 | 7 | 0.2 | 0.5±0.1 | 15.0±0.25 | |
| -0.1 | |||||||||
| M5*0.8 | 0.5-2.0 | 12.5 | 7 | 6.9 | 8 | 0.25 | 0.5±0.1 | 16.5±0.25 | |
| -0.1 | |||||||||
| M6*1.0 | 0.5-2.5 | 15.5 | 9 | 8.9 | 10 | 0.25 | 0.6±0.15 | 20.5±0.3 | |
| -0.1 | |||||||||
| M8*1.25 | 0.5-3.0 | 17.6 | 11 | 10.9 | 12 | 0.25 | 0.65±0.15 | 23.0±0.3 | |
| -0.1 | |||||||||
| M10*1.5 | 1.0-3.5 | 18.3 | 13 | 12.9 | 14 | 0.35 | 0.7±0.15 | 24.5±0.3 | |
| -0.1 | |||||||||
The hexagonal body prevents this from turning, making this type of rivet nut widely preferred for re...

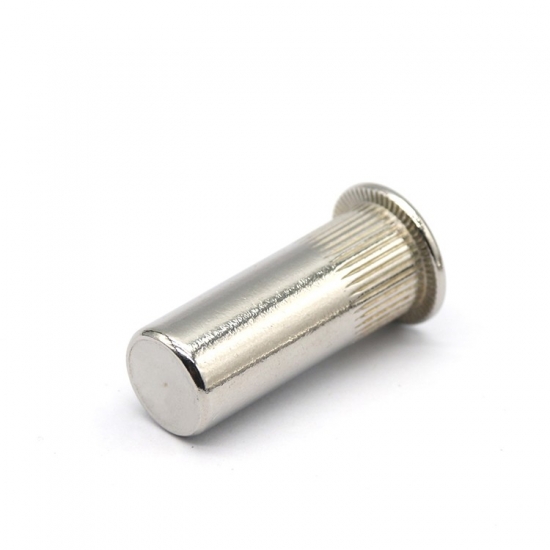

Reduced head knurled closed end rivet nuts imporove torque-to-turn resistance for softer materials a...
Flat head round body close end rivet nuts offers a quick, reliable and low-cost solution for i...
Closed end rivet nuts provide a 100% watertight connection, ensuring that the thread remains unaffec...
Flat head full hex blind rivet nuts feature a hexagonal body, a large flange and a close end, result...
The full hex increases its body diameter, enhancing thread strength and torque capability.
Semi hex body close end threaded inserts feature a half hex and a half round body, so it is not only...
Knurled body rivet nuts feature increased torque strength, extreme vibration resistance and 360°...
