Mono Lock rivets can be used to fasten metal to metal and metal to plastic.
Application: automotive, cabinets and enclosures, commercial vehicles, domestic appliances, heating and ventilating, and marine and hostile environments.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc PlatedMin order:
1000pcsLead Time:

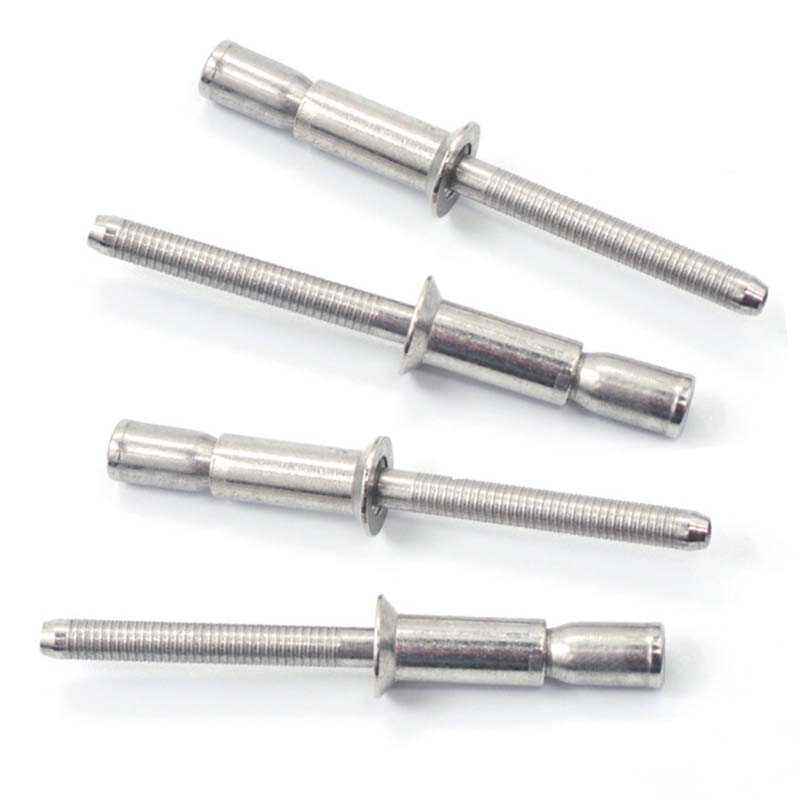

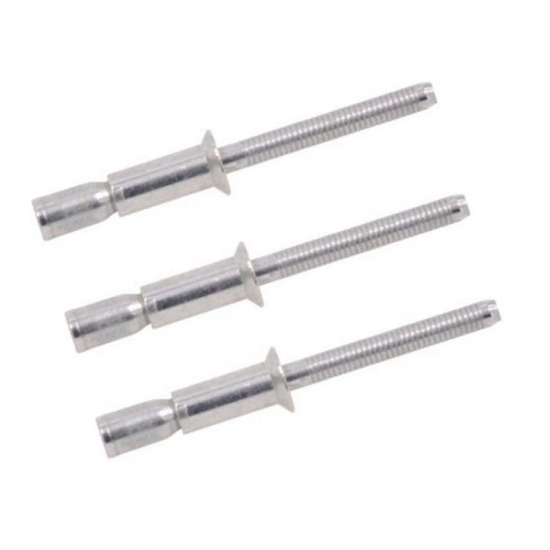

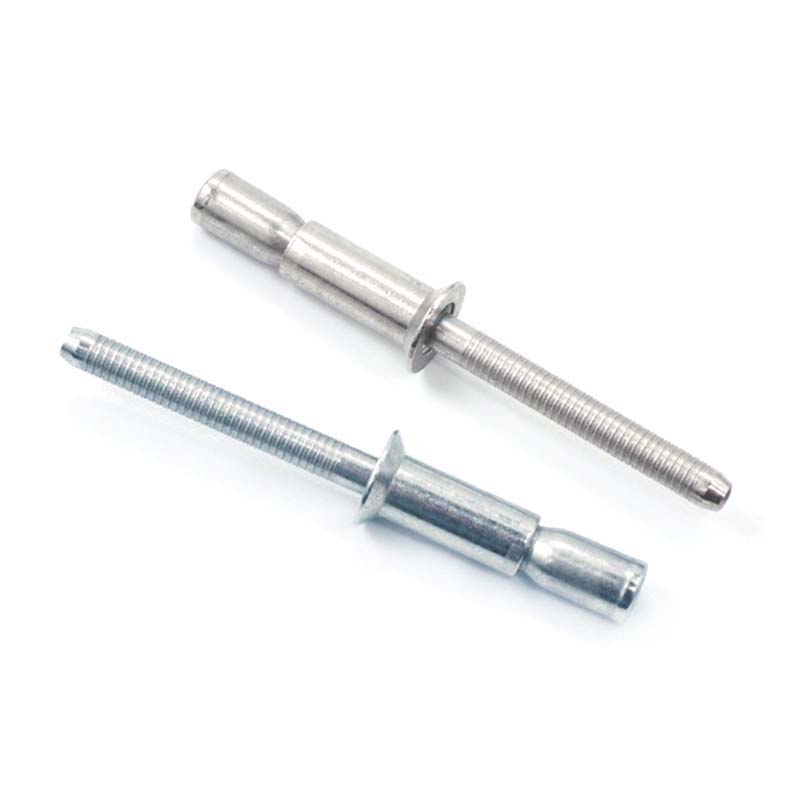

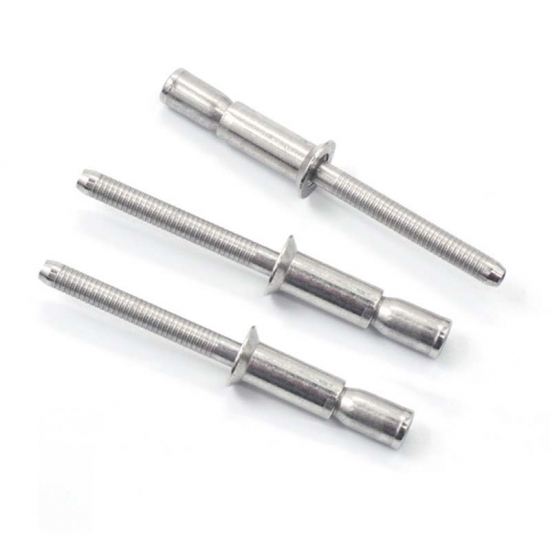

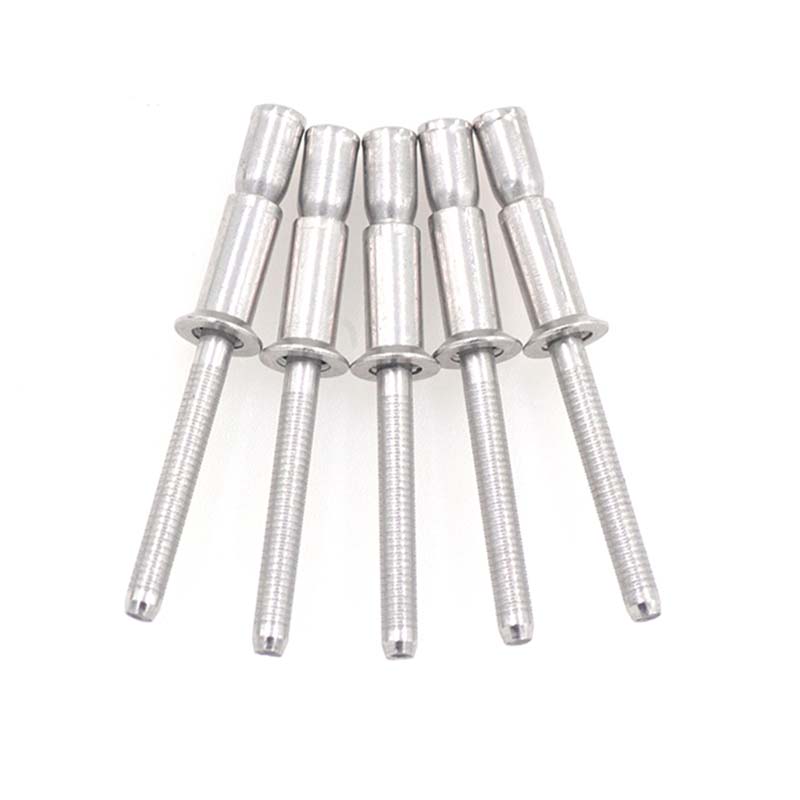

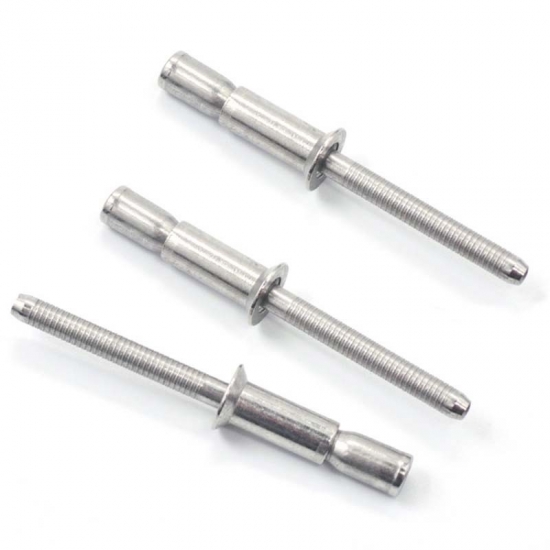

7-35 daysCountersunk Head Mono Lock Blind Rivets
When it comes to demanding applications that prioritize customer needs for safety and performance, Mono Lock blind rivets are the ultimate choice. These rivets excel in situations that call for a high-strength fastener and require access from only one side.
These breakstem fasteners with multiple grips ensure both a completely sealed joint and a visible lock.
Mono Lock rivets can be used to fasten metal to metal and metal to plastic.
Application: automotive, cabinets and enclosures, commercial vehicles, domestic appliances, heating and ventilating, and marine and hostile environments.
Diameter sizes: 4.8mm, 6.4mm
Available materials: Aluminum, Steel, Stainless Steel
Material (Body/Mandrel)
Aluminum/ Aluminum
Steel/ Steel
Stainless steel/ Stainless steel
Head Style
Dome Head Rivets
Countersunk Head Rivets
Advantages
Excellent hole filling property and vibration resistant effect are realized by rapidly expanded rivet body, which can provide supplementary riveting for the irregular and over tolerance holesoval or malposition holes.
Good large-gap closing ability and strong clamp force of sheets.
Mechanical mandrel locking mechanism which avoids damage, electric leakage or marowak sound caused by the loosening of mandrel.
WIde grip range.
High shear and tensile strength.
Visual external locking system which is convenient for rapidly and simply checking whether the installation is in place.

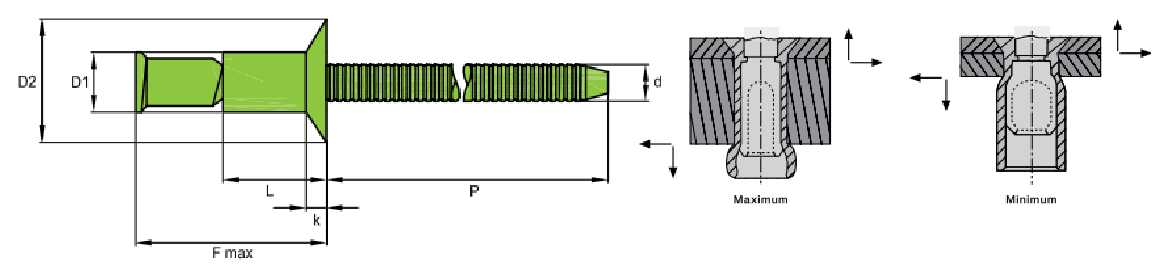

SS/SS Countersunk Head Mono Lock Blind Rivet
| RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
| D1 | F |  |
D2 | k | d | p | DRILL |  |
 |
| MAX. | REF. | MAX. | MIN. | MIN. | MIN. | ||||
| 4.8 +0.08 -0.15 |
20.2 | 3.2-8.4 | 8.3-8.8 | 1.8 | 3.10 | 27.00 | 4.9-5.1 | 5700 N | 4400 N |
| 26.3 | 3.2-12.2 | ||||||||
| 6.4 +0.08 -0.15 |
27.2 | 3.2-12.1 | 10.1-10.6 | 2.3 | 4.10 | 28.00 | 6.6-6.9 | 10600 N | 8200 N |
| 37.5 | 10.5-18.4 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
