Blind Rivet Studs are used to join sheet materials together and provide a male threaded fastening point.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc plated, Black, Dacromet, etcMin order:
1000pcsLead Time:

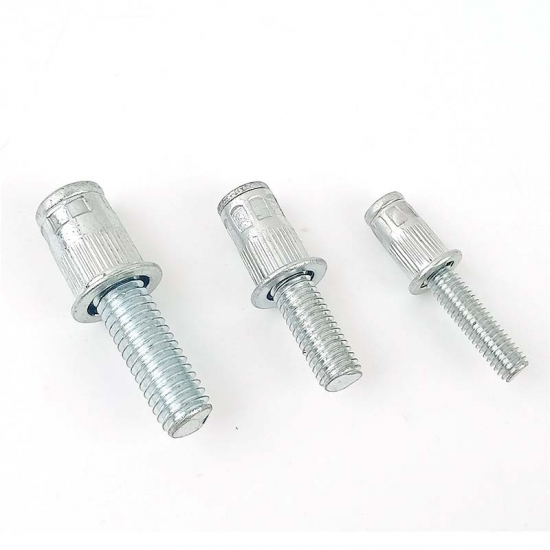

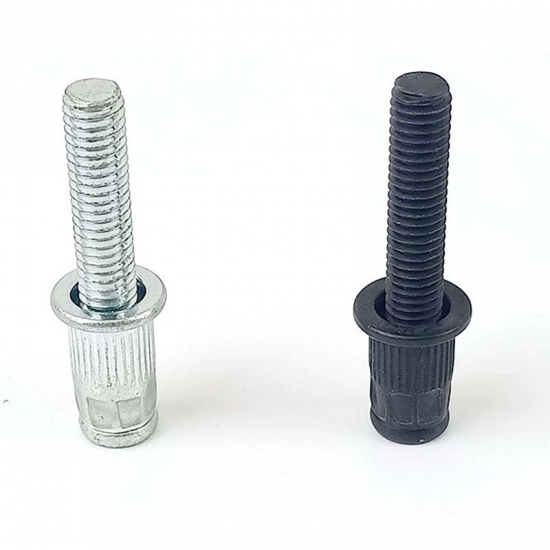

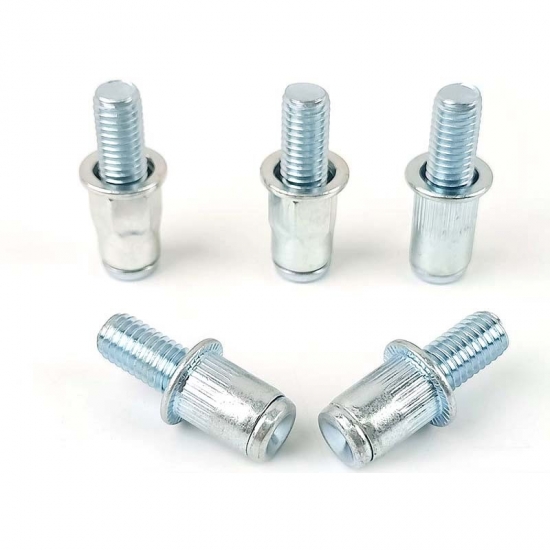

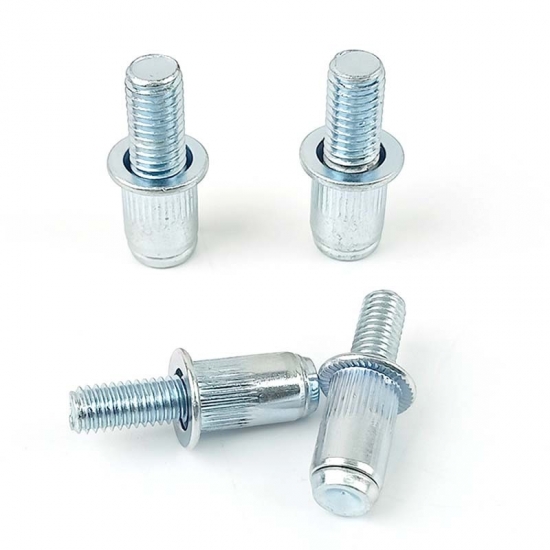

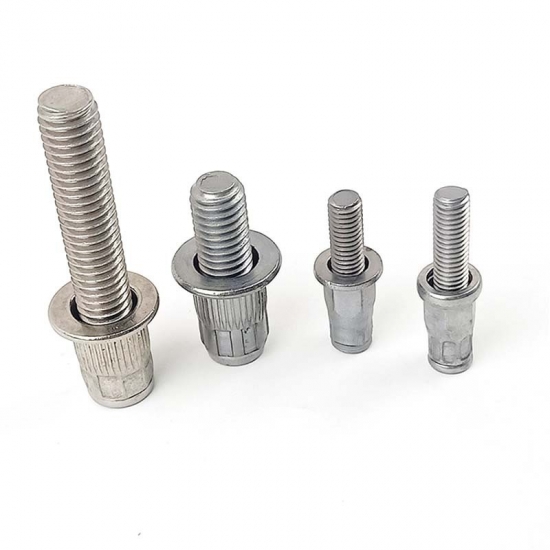

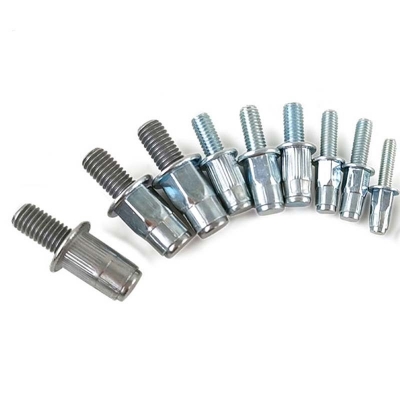

7-35 daysHigh Quality Galvanized Knurled Blind Threaded Rivet Studs
Blind rivet studs consist of a rivet nut and a screw. It is commonly used for the joining multiple materials, often sheet metal or thin-walled structures, through the creation of a durable and strong threaded connection. Its most suitable application lies in hard metric dimensioned drilled or punched holes.
Material

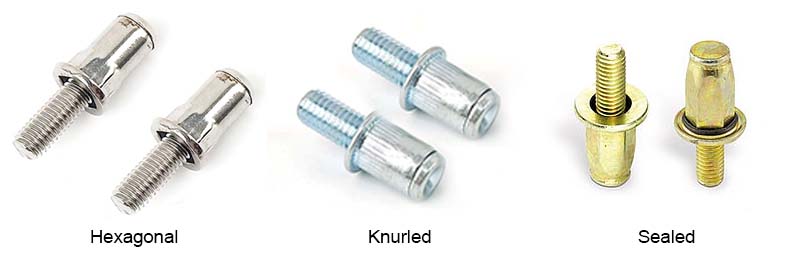

Types
Advantages

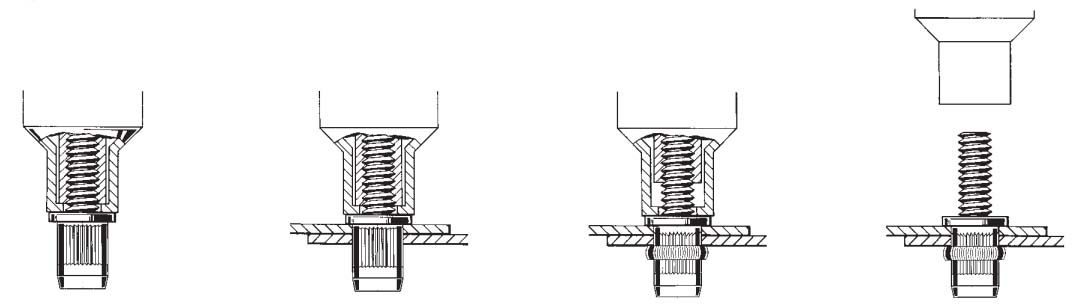

How to Install it
Its installation is same as common blind rivets, putting it into a pre-drilled hole, and then using a tool to fasten it.

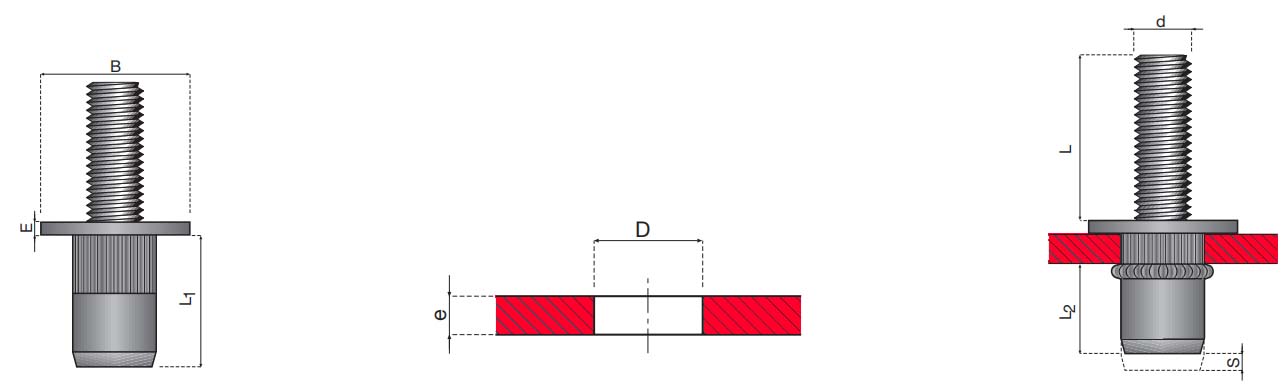

Dimensions
| d | Thickness e |
Hole D +0.1/0 |
B | E | S* | L | L1 | L2* |
| M5 | 0.5-3.0 | 7.0 | 10.0 | 1.0 | S=4.7-e | 15.0 | 11.0 | 5.5 |
| 0.5-3.0 | 7.0 | 10.0 | 1.0 | S=4.7-e | 20.0 | 11.0 | 5.5 | |
| 0.5-3.0 | 7.0 | 10.0 | 1.0 | S=4.7-e | 25.0 | 11.0 | 5.5 | |
| M6 | 0.5-3.0 | 9.0 | 13.0 | 1.5 | S=5.4-e | 15.0 | 13.0 | 7.5 |
| 0.5-3.0 | 9.0 | 13.0 | 1.5 | S=5.4-e | 20.0 | 13.0 | 7.5 | |
| 0.5-3.0 | 9.0 | 13.0 | 1.5 | S=5.4-e | 25.0 | 13.0 | 7.5 | |
| M8 | 0.5-3.0 | 11.0 | 16.0 | 1.5 | S=5.4-e | 20.0 | 14.0 | 8.5 |
| 0.5-3.0 | 11.0 | 16.0 | 1.5 | S=5.4-e | 25.0 | 14.0 | 8.5 |
