Borie Fasteners provide Grooved blind rivet OEM&ODM service, we are committed to providing you with one-stop riveting solutions. Customize Grooved blind rivet according to your needs of material, length, diameter, and surface treatment.
Standard:
Grooved blind rivetDiameter:
3.2mm/4.0mm/4.8mmHead Type:
Dome Head/Large FlangeMaterial:
AluminumCertificate:
ISO9001/IATF16949Finish:
zinc plated/paintedFactory:
We are a factory with 19 years of R&D experienceMOQ:
20000pcsBulk Grooved Blind Rivets For Furniture

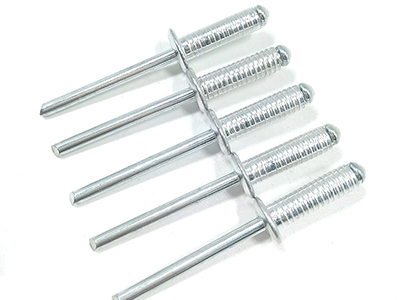

A grooved blind rivet is a type of mechanical fastener used to join two or more pieces of material together permanently It consists of a rivet body with a grooved shank and a mandrel. The grooved shank allows for a more secure grip and prevents the rivet from rotating or spinning during installation.
Material (Body/Mandrel)
Aluminum/ Steel
Color painting is available.
Head Style
Dome Head
Large flange head
Ideal for non metallic materials with blind holes. The grooved body by knurling process, assures a secure grip inside the application after the expansion of the counterhead.
Advantages Of Grooved Blind Rivet
Enhanced joint strength.
Improved resistance to vibration.
Increased fatigue resistance.
Reliable and consistent installation.
Suitable for various materials.
Time-saving and cost-effective fastening option.
Elimination of the need for additional tools or accessories

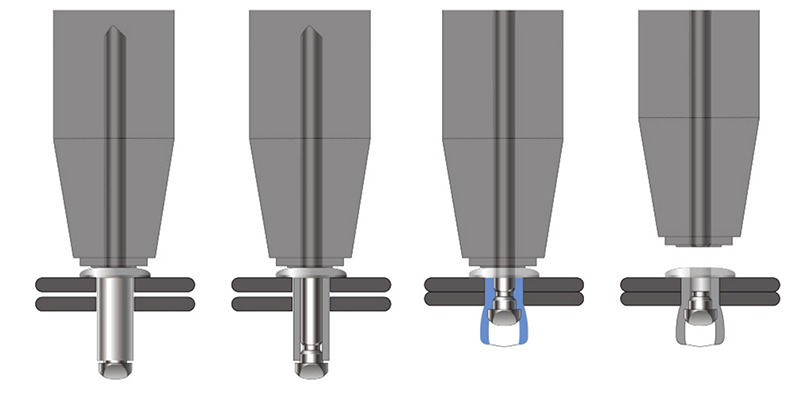

How Does Grooved blind rivet Work?
1. Align the workpieces to be joined.
2. Insert the grooved blind rivet into the pre-drilled hole.
3. Apply pressure to the rivet using a rivet tool.
4. As the tool compresses the rivet, the grooves on the rivet body engage with the surrounding material.
5. The grooves create a secure grip, preventing the rivet from rotating or pulling out.
6. Continue applying pressure until the mandrel breaks off, indicating a completed installation.
7. Inspect the joint to ensure proper installation and a secure connection.
Aluminum Steel Grooved Type Blind Rivets
RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
D1 | L | ![]() |
D2 | k | d | p | DRILL | ![]() |
![]() |
+1/-0 | MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
3.2 +0.35 -0.00 |
10.0 | 6.00 | 5.8-6.5 | 1.0 | 1.75 | 26.00 | 3.4-3.5 | 525 N | 930 N |
14.0 | 10.00 | ||||||||
4.0 +0.35 -0.00 |
8.0 | 4.00 | 7.5-8.0 | 1.3 | 2.15 | 27.00 | 4.3-4.4 | 885 N | 1410 N |
10.0 | 6.00 | ||||||||
12.0 | 8.00 | ||||||||
16.0 | 12.00 | ||||||||
4.8 +0.35 -0.00 |
8.0 | 4.00 | 9.0-9.5 | 1.4 | 2.65 | 28.00 | 5.1-5.2 | 1185 N | 1575 N |
10.0 | 6.00 | ||||||||
11.0 | 7.00 | ||||||||
12.0 | 8.00 | ||||||||
14.0 | 10.00 | ||||||||
16.0 | 12.00 | ||||||||
18.0 | 14.00 | ||||||||
20.0 | 16.00 | ||||||||
25.0 | 20.00 | ||||||||
30.0 | 25.00 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Grooved blind rivets can be used just about anywhere if they are properly installed. Most of them are used in
1. Automotive industry
2. Aerospace industry
3. Construction industry
4. Electrical equipment assembly
5. Furniture manufacturing
6. Marine industry
7. HVAC (Heating, Ventilation, and Air Conditioning)
8. Metal fabrication
9. Machinery assembly
10. Trailer and truck body assembly
