Countersunk Multi Grip Rivets feature a countersunk head that sits flush with the material surface after installation.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc plated, Color painted( Black, etc.)Min order:
1000pcsLead Time:

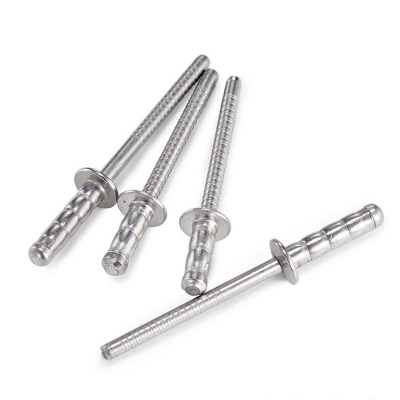

7-35 daysCountersunk CSK Head Multi Grip Blind Rivets
Countersunk Multi Grip Rivets feature a countersunk head that sits flush with the material surface after installation. Multi grip rivets offer a solution for various material thicknesses, eliminating the need for multiple sizes of open end blind rivets. This not only minimizes inventory but also leads to significant cost savings.
Multi Grips provide exceptional versatility and strong clamping force for tasks involving large or irregular drilled holes. When dealing with slightly larger diameter drilled holes, Multi Grips guarantee more reliable performance.
However, it takes more time to apply multi-grip rivets: they provide a stronger fit and require less effort to switch between sizes. Multi-grip rivets are usually more expensive than standard rivets in terms of cost. Nevertheless, this extra cost is offset by the reduction in labor and efficient management of rivet inventory, resulting from uninterrupted work.
Diameter sizes from 3.2 to 4.8mm (1/8 to 3/16).
Available materials: Steel, Aluminum, Stainless
Material (Body/Mandrel)
Aluminum/ Steel
Aluminum/ Stainless steel
Color painting is available.
Head Style
Dome Head Rivets
Countersunk Head Rivets
Large Flange Head Rivets
Advantages
A wide of grip range, reducing inventory.
Strong strength, vibration resistant joint.
Acommodates irregular, oversized, slotted or misaligned holes.
Good appearance and vision.
Aluminum/ Steel Countersunk Head Multi Grip Blind Rivets
RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
D1 | L | D2 | d | p | DRILL | |||
+1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | ||
3.2 +0.08 -0.15 |
9.7 | 2.4-6.4 | 5.5 | 1.75 | 26.00 | 3.3-3.4 | 500 N | 700 N |
4.0 +0.08 -0.15 |
11.3 | 2.8-7.9 | 6.5 | 2.15 | 27.00 | 4.1-4.2 | 850 N | 1200 N |
4.8 +0.08 -0.15 |
12.0 | 2.0-8.0 | 9.7 | 2.63 | 28.00 | 4.9-5.0 | 1200 N | 1700 N |
16.9 | 6.4-12.7 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
