Drive rivet is a very convenient new riveting fasteners, in a narrow space or in an environment where a rivet gun is not available or cannot be used, drive rivets can show its advantages. Using only a hammer to strike one side can make two or more conncetors join together.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc platedMin order:
1000pcsLead Time:

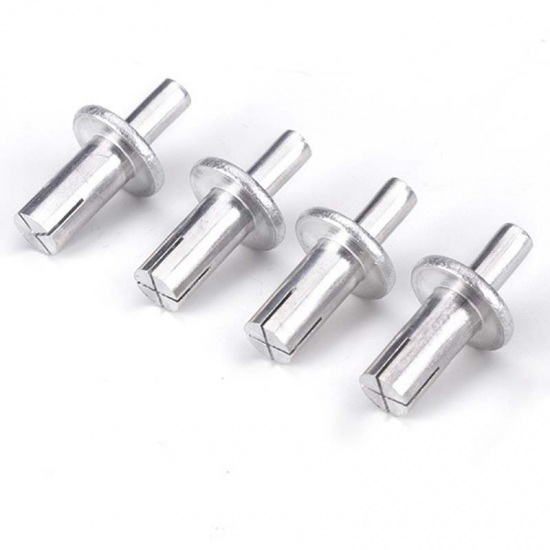

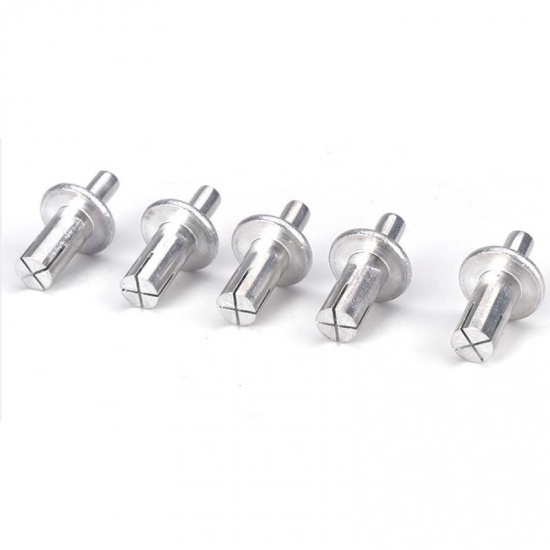

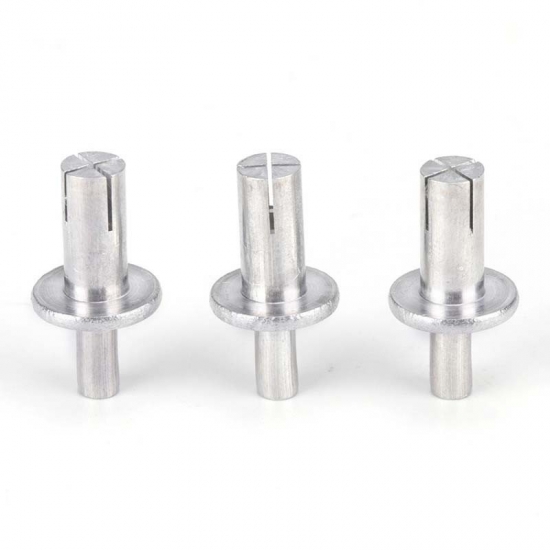

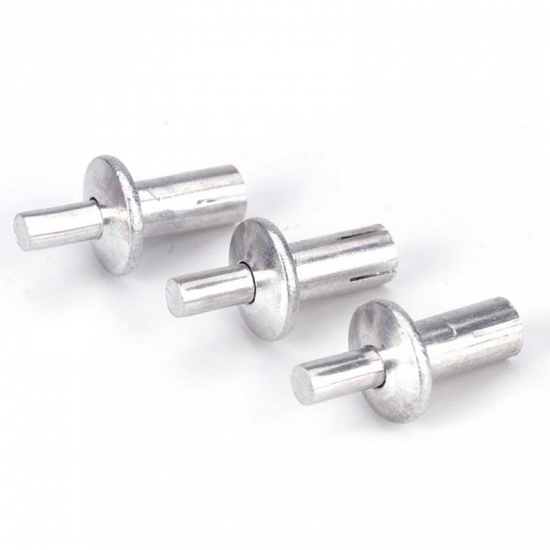

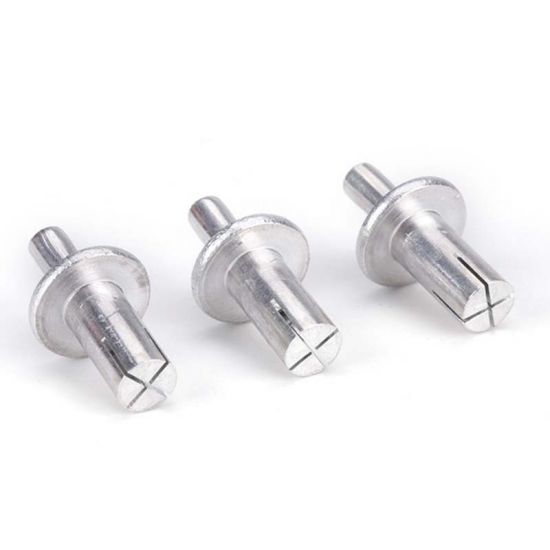

7-35 daysChina Supplier Aluminum Stainless Steel Universal Head Drive Rivets

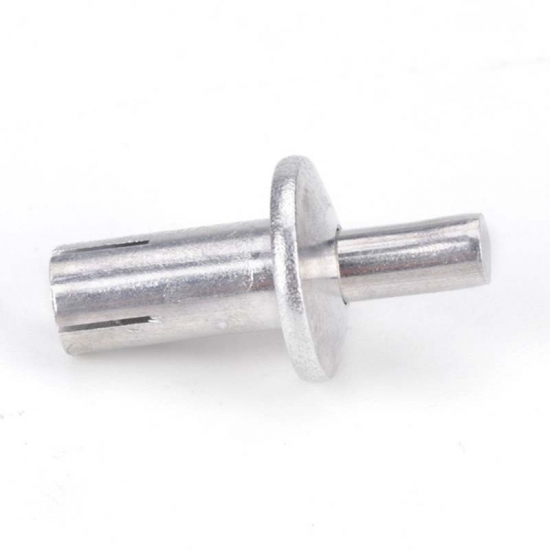

Drive rivets are a type of blind rivet with a short pin that protrudes from the head. Once the drive rivet is inserted into a hole, the pin is driven in with a hammer or other implement to flare out the end of the rivet that is inside the hole. The rivet core locks on the inside, making it rust-resistant and durable.
Drive rivets are commonly used with wood, metal, plastic, and many others.
Diameter sizes: 3.2mm (1/8''), 4.0mm (5/32''), 4.8mm (3/16''), 6.4mm (1/4''), 7.9mm (5/16''), 9.5mm (3/8'')
Available materials: Aluminum, Steel
Head Style
Advantages
How To Use A Drive Rivet

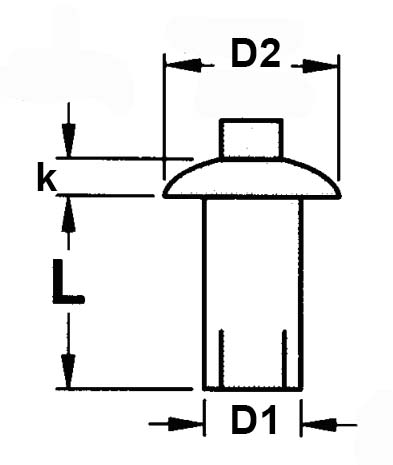

Dimensions
| Diameter D1 |
Head Diameter D2 |
Head Height k |
L | Grip Range | ||
| MIN. | NOM. | MAX. | ||||
| 3.2 (.125) | 6.4 (.250) | 1.4 (.054) | 4 (.156) | 0.4 (.016) | 0.8 (.031) | 1.2 (.047) |
| 4 (.156) | 1.2 (.047) | 1.6 (.063) | 2 (.078) | |||
| 4.8 (.188) | 2 (.078) | 2.4 (.094) | 2.8 (.109) | |||
| 5.6 (.219) | 2.8 (.109) | 3.2 (.125) | 3.6 (.141) | |||
| 6.4 (.250) | 3.6 (.141) | 4 (.156) | 4.4 (.172) | |||
| 7.1 (.281) | 4.4 (.172) | 4.8 (.188) | 5.2 (.203) | |||
| 7.9 (.313) | 5.2 (.203) | 5.6 (.219) | 6 (.234) | |||
| 8.7 (.344) | 6 (.234) | 6.4 (.250) | 6.8 (.266) | |||
| 9.5 (.375) | 6.8 (.266) | 7.1 (.281) | 7.5 (.297) | |||
| 10.3 (.406) | 7.5 (.297) | 7.9 (.313) | 8.3 (.328) | |||
| 11.1 (.438) | 8.3 (.328) | 8.7 (.344) | 9.1 (.359) | |||
| 11.9 (.469) | 9.1 (.359) | 9.5 (.375) | 9.9 (.391) | |||
| 12.7 (.500) | 9.9 (.391) | 10.3 (.406) | 10.7 (.422) | |||
| 13.5 (.531) | 10.7 (.422) | 11.1 (.438) | 11.5 (.453) | |||
| 4.0 (.156) | 7.9 (.312) | 1.7(.067) | 4.8 (.188) | 0.4 (.016) | 0.8 (.031) | 1.2 (.047) |
| 4.8 (.188) | 1.2 (.047) | 1.6 (.063) | 2 (.078) | |||
| 5.6 (.219) | 2 (.078) | 2.4 (.094) | 2.8 (.109) | |||
| 6.4 (.250) | 2.8 (.109) | 3.2 (.125) | 3.6 (.141) | |||
| 7.1 (.281) | 3.6 (.141) | 4 (.156) | 4.4 (.172) | |||
| 7.9 (.313) | 4.4 (.172) | 4.8 (.188) | 5.2 (.203) | |||
| 8.7 (.344) | 5.2 (.203) | 5.6 (.219) | 6 (.234) | |||
| 9.5 (.375) | 6 (.234) | 6.4 (.250) | 6.8 (.266) | |||
| 10.3 (.406) | 6.8 (.266) | 7.1 (.281) | 7.5 (.297) | |||
| 11.1 (.438) | 7.5 (.297) | 7.9 (.313) | 8.3 (.328) | |||
| 11.9 (.469) | 8.3 (.328) | 8.7 (.344) | 9.1 (.359) | |||
| 12.7 (.500) | 9.1 (.359) | 9.5 (.375) | 9.9 (.391) | |||
| 13.5 (.531) | 9.9 (.391) | 10.3 (.406) | 10.7 (.422) | |||
| 14.3 (.563) | 10.7 (.422) | 11.1 (.438) | 11.5 (.453) | |||
| 15.1 (.594) | 11.5 (.453) | 11.9 (.469) | 12.3 (.484) | |||
| 15.9 (.625) | 12.3 (.484) | 12.7 (.500) | 13.1 (.516) | |||
| 16.7 (.656) | 13.1 (.516) | 13.5 (.531) | 13.9 (.547) | |||
| 17.5 (.688) | 13.9 (.547) | 14.3 (.563) | 14.7 (.578) | |||
| 18.3 (.719) | 14.7 (.578) | 15.1 (.594) | 15.5 (.609) | |||
| 19.1 (.750) | 15.5 (.609) | 15.9 (.625) | 16.3 (.641) | |||
| 4.8 (.188) | 9.5 (.375) | 2.0 (.080) | 6.4 (.250) | 1.2 (.047) | 2.4 (.094) | 3.6 (.141) |
| 7.1 (.281) | 2 (.078) | 3.2 (.125) | 4.4 (.172) | |||
| 8.7 (.344) | 3.6 (.141) | 4.8 (.188) | 6 (.234) | |||
| 10.3 (.406) | 5.2 (.203) | 6.4 (.250) | 7.5 (.297) | |||
| 11.9 (.469) | 6.8 (.266) | 7.9 (.313) | 9.1 (.359) | |||
| 13.5 (.531) | 8.3 (.328) | 9.5 (.375) | 10.7 (.422) | |||
| 15.1 (.594) | 9.9 (.391) | 11.1 (.438) | 12.3 (.484) | |||
| 16.7 (.656) | 11.5 (.453) | 12.7 (.500) | 13.9 (.547) | |||
| 18.3 (.719) | 13.1 (.516) | 14.3 (.563) | 15.5 (.609) | |||
| 19.8 (.781) | 14.7 (.578) | 15.9 (.625) | 17.1 (.672) | |||
| 21.4 (.844) | 16.3 (.641) | 17.5 (.688) | 18.7 (.734) | |||
| 23 (.906) | 17.9 (.703) | 19.1 (.750) | 20.3 (.797) | |||
| 24.6 (.969) | 19.4 (.766) | 20.6 (.813) | 21.8 (.859) | |||
| 26.2 (1.031) | 21 (.828) | 22.2 (.875) | 23.4 (.922) | |||
| 27.8 (1.094) | 22.6 (.891) | 23.8 (.938) | 25 (.984) | |||
| 29.4 (1.156) | 24.2 (.953) | 25.4 (1.000) | 26.6 (1.047) | |||
| 6.4 (.250) | 13 (.500) | 2.7 (.107) | 6.4 (.250) | 1.2 (.047) | 2.4 (.094) | 3.6 (.141) |
| 7.1 (.281) | 2 (.078) | 3.2 (.125) | 4.4 (.172) | |||
| 8.7 (.344) | 3.6 (.141) | 4.8 (.188) | 6 (.234) | |||
| 10.3 (.406) | 5.2 (.203) | 6.4 (.250) | 7.5 (.297) | |||
| 11.9 (.469) | 6.8 (.266) | 7.9 (.313) | 9.1 (.359) | |||
| 13.5 (.531) | 8.3 (.328) | 9.5 (.375) | 10.7 (.422) | |||
| 15.1 (.594) | 9.9 (.391) | 11.1 (.438) | 12.3 (.484) | |||
| 16.7 (.656) | 11.5 (.453) | 12.7 (.500) | 13.9 (.547) | |||
| 18.3 (.719) | 13.1 (.516) | 14.3 (.563) | 15.5 (.609) | |||
| 19.8 (.781) | 14.7 (.578) | 15.9 (.625) | 17.1 (.672) | |||
| 21.4 (.844) | 16.3 (.641) | 17.5 (.688) | 18.7 (.734) | |||
| 23 (.906) | 17.9 (.703) | 19.1 (.750) | 20.3 (.797) | |||
| 24.6 (.969) | 19.4 (.766) | 20.6 (.813) | 21.8 (.859) | |||
| 26.2 (1.031) | 21 (.828) | 22.2 (.875) | 23.4 (.922) | |||
| 27.8 (1.094) | 22.6 (.891) | 23.8 (.938) | 25 (.984) | |||
| 29.4 (1.156) | 24.2 (.953) | 25.4 (1.000) | 26.6 (1.047) | |||
| 7.9 (.313) | 16 (.625) | 3.5 (.138) | 11.1 (.438) | 3.4 (.132) | 4.8 (.188) | 6.2 (.242) |
| 13.5 (.531) | 5.7 (.226) | 7.1 (.281) | 8.5 (.336) | |||
| 15.9 (.625) | 8.1 (.320) | 9.5 (.375) | 10.9 (.430) | |||
| 18.3 (.719) | 10.5 (.414) | 11.9 (.469) | 13.3 (.523) | |||
| 20.6 (.813) | 12.9 (.508) | 14.3 (.563) | 15.7 (.617) | |||
| 23 (.906) | 15.3 (.601) | 16.7 (.656) | 18.1 (.711) | |||
| 25.4 (1.000) | 17.7 (.695) | 19.1 (.750) | 20.5 (.804) | |||
| 27.8 (1.094) | 20 (.789) | 21.4 (.844) | 22.8 (.898) | |||
| 30.2 (1.188) | 22.4 (.882) | 23.8 (.938) | 25.2 (.992) | |||
| 32.5 (1.281) | 24.8 (.976) | 26.2 (1.031) | 27.6 (1.086) | |||
| 9.5 (.375) | 19 (.750) | 4.2 (.166) | 12.7 (.500) | 3.2 (.125) | 4.8 (.188) | 6.4 (.250) |
| 15.1 (.594) | 5.5 (.219) | 7.1 (.281) | 8.7 (.344) | |||
| 17.5 (.688) | 7.9 (.313) | 9.5 (.375) | 11.1 (.438) | |||
| 19.8 (.781) | 10.3 (.406) | 11.9 (.469) | 13.5 (.531) | |||
| 22.2 (.875) | 12.7 (.500) | 14.3 (.563) | 15.9 (.625) | |||
| 24.6 (.969) | 15.1 (.594) | 16.7 (.656) | 18.3 (.719) | |||
| 27 (1.063) | 17.5 (.688) | 19.1 (.750) | 20.7 (.813) | |||
| 29.4 (1.156) | 19.8 (.781) | 21.4 (.844) | 23 (.906) | |||
| 31.8 (1.250) | 22.2 (.875) | 23.8 (.938) | 25.4 (1.000) | |||
| 34.1 (1.344) | 24.6 (.969) | 26.2 (1.031) | 27.8 (1.094) | |||
Application
