Borie Fasteners is a professional rivet fastening manufacturer and supplier, we are committed to providing clients with superior fastening solutions. Pressure rivet nut customized available in material, length, diameter,surface treatment.
Standard:

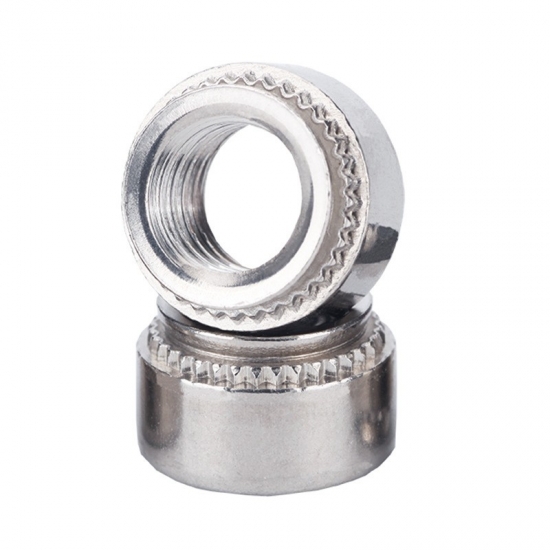

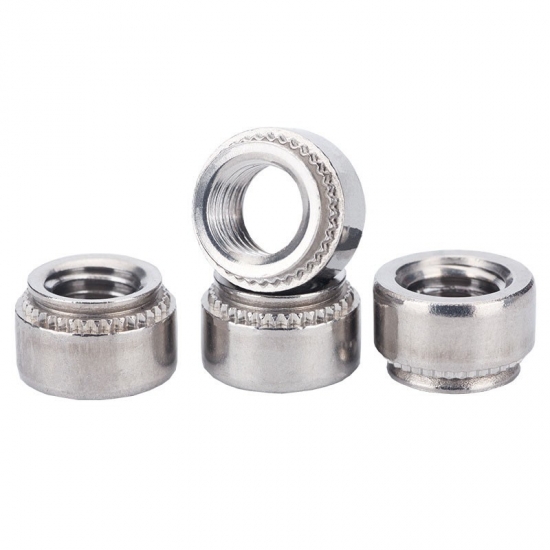

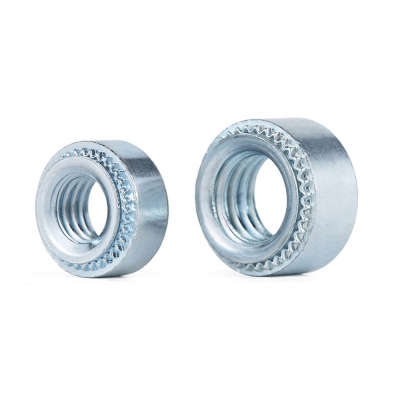

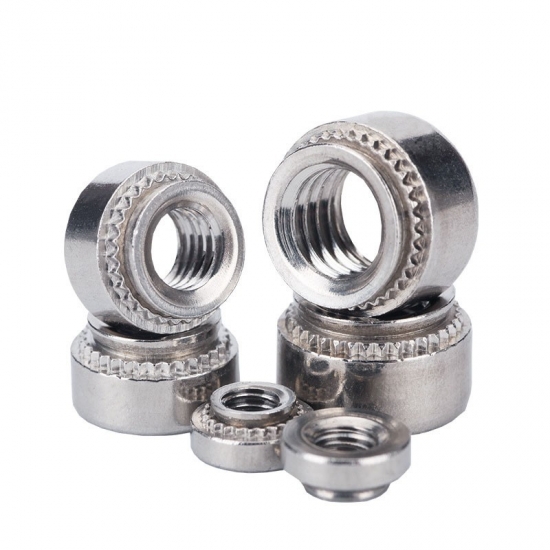

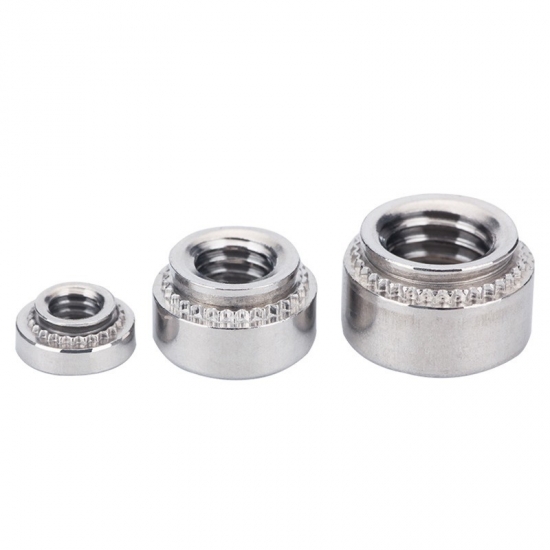

Round self clinching nutMaterial:
Aluminum/Steel/Stainless Steel/Copper/Brass/MonelCertificate:
ISO9001/IATF16949Finish:
zinc plated/paintedFactory:
We are a factory with 19 years of R&D experienceMOQ:
10000pcs
Customized available for your rivet need

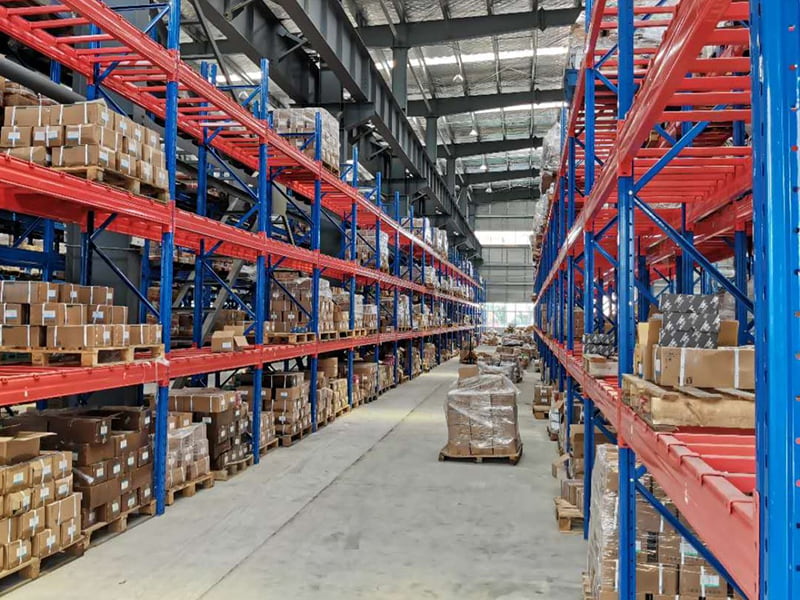

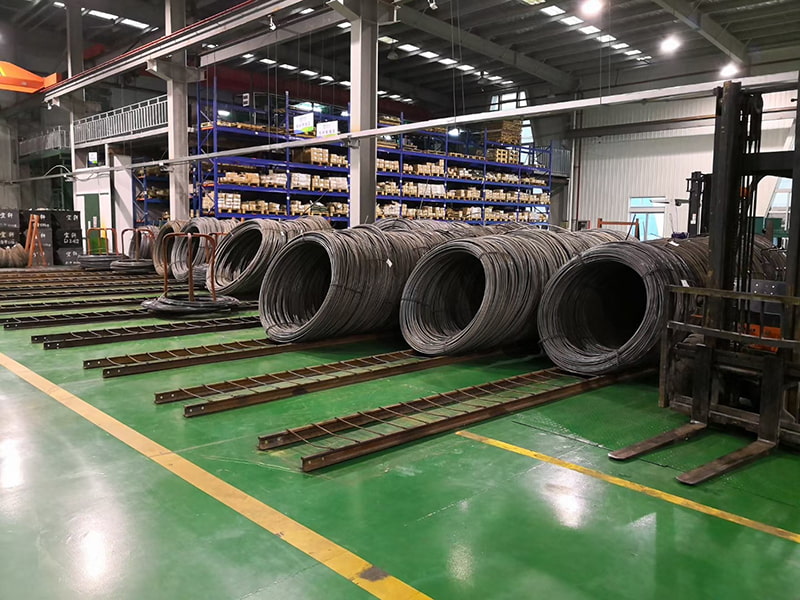

Our Factory
Located in the beautiful Wuxi, Jiangsu, with a plant construction area of 9,000 square meters, it is close to Shanghai port, convenient transportation and elegant environment, and is a professional rivet manufacturing and riveting production enterprise integrating R&D, production and sales. Borie has advanced production equipment and strong technical content, in strict accordance with the international rivet industry IFI, POP, DIN and other standards for production, and can customize a variety of non-standard products according to customer needs.

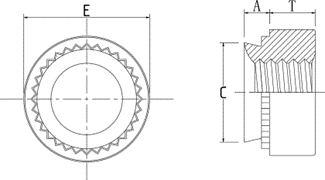

Thread Size | Type | Thread Code | Shark Code | A (shank) Max. |
Rec. Min.Sheet Thickness(1) |
Hole size In sheet +.003 -.000 |
C Max. |
E ±.0.10 |
T ±.0.10 |
MIn. Dist. Hole φ To Edge |
||
Fasteners Material | ||||||||||||
Carbon Steel | Stainless Steel | Harded Stainless Steel | ||||||||||
M2x0.4 | S | CLS | SP | M2 | -1 | 0.97 | 1 | 4.22 | 4.2 | 6.35 | 1.5 | 4.8 |
-2 | 1.38 | 1.4 | ||||||||||
-3 | 2.21 | 2.29 | ||||||||||
0 | 0.77 | 0.8 | ||||||||||
M2.5x0.45 | S | CLS | SP | M2.5 | -1 | 0.97 | 1 | 4.22 | 4.2 | 6.35 | 1.5 | 4.8 |
-2 | 1.38 | 1.4 | ||||||||||
-3 | 2.21 | 2.29 | ||||||||||
0 | 0.77 | 0.8 | ||||||||||
M3x0.5 | S | CLS | SP | M3 | -1 | 0.97 | 1 | 4.22 | 4.2 | 6.35 | 1.5 | 4.8 |
-1.9 | 1.95 | 2 | ||||||||||
-2 | 1.38 | 1.4 | ||||||||||
-3 | 2.21 | 2.29 | ||||||||||
0 | 0.77 | 0.8 | ||||||||||
M 3.5x0.6 | S | CLS | SP | M3.5 | -1 | 0.97 | 1 | 4.75 | 4.73 | 7.11 | 1.5 | 5.6 |
-2 | 1.38 | 1.4 | ||||||||||
-3 | 2.21 | 2.29 | ||||||||||
0 | 0.77 | 0.8 | ||||||||||
M4x0.7 | S | CLS | SP | M4 | -1 | 0.97 | 1 | 5.41 | 5.38 | 7.87 | 2 | 6.9 |
-1.9 | 1.95 | 2 | ||||||||||
-2 | 1.38 | 1.4 | ||||||||||
-3 | 2.21 | 2.29 | ||||||||||
0 | 0.77 | 0.8 | 6.35 | 6.33 | ||||||||
M5x0.8 | S | CLS | SP | M5 | -1 | 0.97 | 1 | 8.64 | 2 | 7.1 | ||
-1.9 | 1.95 | 2 | 6.4 | 6.38 | ||||||||
-2 | 1.38 | 1.4 | ||||||||||
-3 | 2.21 | 2.29 | ||||||||||
-0.8 | 0.77 | 0.8 | ||||||||||
M6x1.0 | S | CLS | SP | M6 | 0 | 0.89 | 0.92 | 8.75 | 8.73 | 11.18 | 4.08 | 8.6 |
0 | 1.15 | 1.2 | ||||||||||
-1 | 1.38 | 1.4 | ||||||||||
-1.9 | 1.95 | 2 | ||||||||||
-2 | 2.21 | 2.29 | ||||||||||
-3 | 3.05 | 3.18 | ||||||||||
0 | 1.15 | 1.2 | ||||||||||
M8x1.25 | S | CLS | SP | M8 | -1 | 1.38 | 1.4 | 10.5 | 10.47 | 12.7 | 5.47 | 9.7 |
-1.9 | 1.95 | 2 | ||||||||||
-2 | 2.21 | 2.29 | ||||||||||
-3 | 3.05 | 3.18 | ||||||||||
0 | 1.6 | 1.7 | ||||||||||
M10x1.5 | S | CLS | SP | M10 | -1 | 2.21 | 2.29 | 14 | 13.97 | 17.35 | 7.45 | 13.5 |
-2 | 3.05 | 3.18 | ||||||||||
0 | 1.6 | 1.7 | ||||||||||
M12x1.75 | S | CLS | SP | M12 | 0 | 2.21 | 2.29 | 17 | 16.95 | 20.57 | 8.5 | 16 |
-1 | 3.05 | 3.18 | ||||||||||
-2 | 5.95 | 6 | ||||||||||
Inch Size | ||||||||||||
.086-56 | 0 | 0.03 | 0.03 | |||||||||
(#2-56) | S | CLS | SP | 256 | -1 | 0.038 | 0.04 | 0.166 | 0.165 | 0.25 | 0.07 | 0.19 |
-2 | 0.054 | 0.056 | ||||||||||
.099-48 | 0 | 0.03 | 0.03 | |||||||||
(#3-48) | S | CLS | SP | 348 | -1 | 0.038 | 0.04 | 0.166 | 0.165 | 0.25 | 0.07 | 0.19 |
-2 | 0.054 | 0.056 | ||||||||||
0 | 0.03 | 0.03 | ||||||||||
.112-40 | S | CLS | SP | 440 | -1 | 0.038 | 0.04 | 0.166 | 0.165 | 0.25 | 0.07 | 0.19 |
(#4-40) | -2 | 0.54 | 0.056 | |||||||||
-3 | 0.087 | 0.09 | ||||||||||
0 | 0.03 | 0.03 | ||||||||||
.138-32 | S | CLS | SP | 632 | -1 | 0.038 | 0.04 | 0.1875 | 0.187 | 0.28 | 0.07 | 0.22 |
(#6-32) | -2 | 0.054 | 0.056 | |||||||||
-3 | 0.087 | 0.09 | ||||||||||
0 | 0.03 | 0.03 | ||||||||||
.164-32 | S | CLS | SP | 832 | -1 | 0.038 | 0.04 | 0.213 | 0.212 | 0.31 | 0.09 | 0.27 |
(#8-32) | -2 | 0.054 | 0.056 | |||||||||
-3 | 0.087 | 0.09 | ||||||||||
0 | 0.03 | 0.03 | ||||||||||
.190-24 | S | CLS | SP | 24 | -1 | 0.038 | 0.04 | 0.25 | 0.249 | 0.34 | 0.09 | 0.28 |
(#10-24) | -2 | 0.054 | 0.056 | |||||||||
-3 | 0.087 | 0.09 | ||||||||||
0 | 0.03 | 0.03 | ||||||||||
.190-32 | S | CLS | SP | 32 | -1 | 0.038 | 0.04 | 0.25 | 0.249 | 0.34 | 0.09 | 0.28 |
(#10-32) | -2 | 0.054 | 0.056 | |||||||||
-3 | 0.087 | 0.09 | ||||||||||
.216-24 | -1 | 0.038 | 0.04 | |||||||||
(#12-24) | S | CLS | / | 1224 | -2 | 0.054 | 0.056 | 0.277 | 0.276 | 0.37 | 0.13 | 0.31 |
-3 | 0.087 | 0.09 | ||||||||||
0 | 0.045 | 0.047 | ||||||||||
.250-20 | S | CLS | SP | 420 | -1 | 0.054 | 0.056 | 0.344 | 0.343 | 0.44 | 0.17 | 0.34 |
(#1/4-20) | -2 | 0.087 | 0.09 | |||||||||
-3 | 0.12 | 0.125 | ||||||||||
.250-28 | -1 | 0.054 | 0.056 | |||||||||
(#1/4-28) | S | CLS | / | 428 | -2 | 0.087 | 0.09 | 0.344 | 0.343 | 0.44 | 0.17 | 0.34 |
-3 | 0.12 | 0.125 | ||||||||||
.313-18 | -1 | 0.054 | 0.056 | |||||||||
(#5/16-18) | S | CLS | SP | 518 | -2 | 0.087 | 0.09 | 0.413 | 0.412 | 0.5 | 0.23 | 0.38 |
-3 | 0.12 | 0.125 | ||||||||||
.313-24 | -1 | 0.054 | 0.056 | |||||||||
(#5/16-24) | S | CLS | SP | 524 | -2 | 0.087 | 0.09 | 0.413 | 0.412 | 0.5 | 0.23 | 0.38 |
-3 | 0.12 | 0.125 | ||||||||||
.375-16 | -1 | 0.087 | 0.09 | |||||||||
(#3/8-16) | S | CLS | SP | 616 | -2 | 0.12 | 0.125 | 0.5 | 0.499 | 0.56 | 0.27 | 0.44 |
-3 | 0.235 | 0.25 | ||||||||||
.375-24 | -1 | 0.087 | 0.09 | |||||||||
(#3/8-24) | S | CLS | SP | 624 | -2 | 0.12 | 0.125 | 0.5 | 0.499 | 0.56 | 0.27 | 0.44 |
-3 | 0.235 | 0.25 | ||||||||||
.438-20 | S | CLS | / | 720 | -1 | 0.087 | 0.092 | 0.562 | 0.561 | 0.687 | 0.311 | 0.562 |
.500-13 | -1 | 0.12 | 0.125 | |||||||||
(1/2-13) | S | CLS | / | 813 | -2 | 0.235 | 0.25 | 0.656 | 0.655 | 0.81 | 0.36 | 0.63 |
.500-20 | -1 | 0.12 | 0.125 | |||||||||
(1/2-20) | S | CLS | / | 820 | -2 | 0.235 | 0.25 |
